61% polyester, 39% aluminum foil
OEM, OED
ISO
China
| Quantity: | |
|---|---|
Aluminum shading nets are usually used for crops that are sensitive to light and temperature, especially those that need precise light control, cooling or protection from strong light burns, according to the greenhouse internal environment and crop needs, to provide a suitable growing environment for crops. Widely used in flower planting, high-grade vegetables, seedling, medicinal plants and scientific research greenhouse.
It is made of Aluminum foil and closed structure(polyester,polyolefin). This aluminum screen can be used alone to achieve the dual purpose of cooling during the day and high efficiency and energy saving at night.
The polyester, polyolefin have the characteristics of ultraviolet (UV) resistance, aging resistance and high tensile strength.
The surface of the composite aluminum foil (mostly vacuum aluminum plating or aluminum film lamination), there flectivity of the aluminum foil can reach 80% to 95%, effectively reflecting the infrared and ultraviolet rays in the sunlight.
Add anti-aging agents (such as UV stabilizers), antioxidants, etc., to extend outdoor service life.
The use of warp and weft knitting or knitting process to form a uniform mesh structure.
The aluminum foil is attached to the substrate through a vacuum aluminization or lamination process to ensure reflectivity (up to 80%-95%).
Using edge wrapping or heat sealing technology to prevent off-line, some products are equipped with reinforcing bars or metal rings for easy installation.

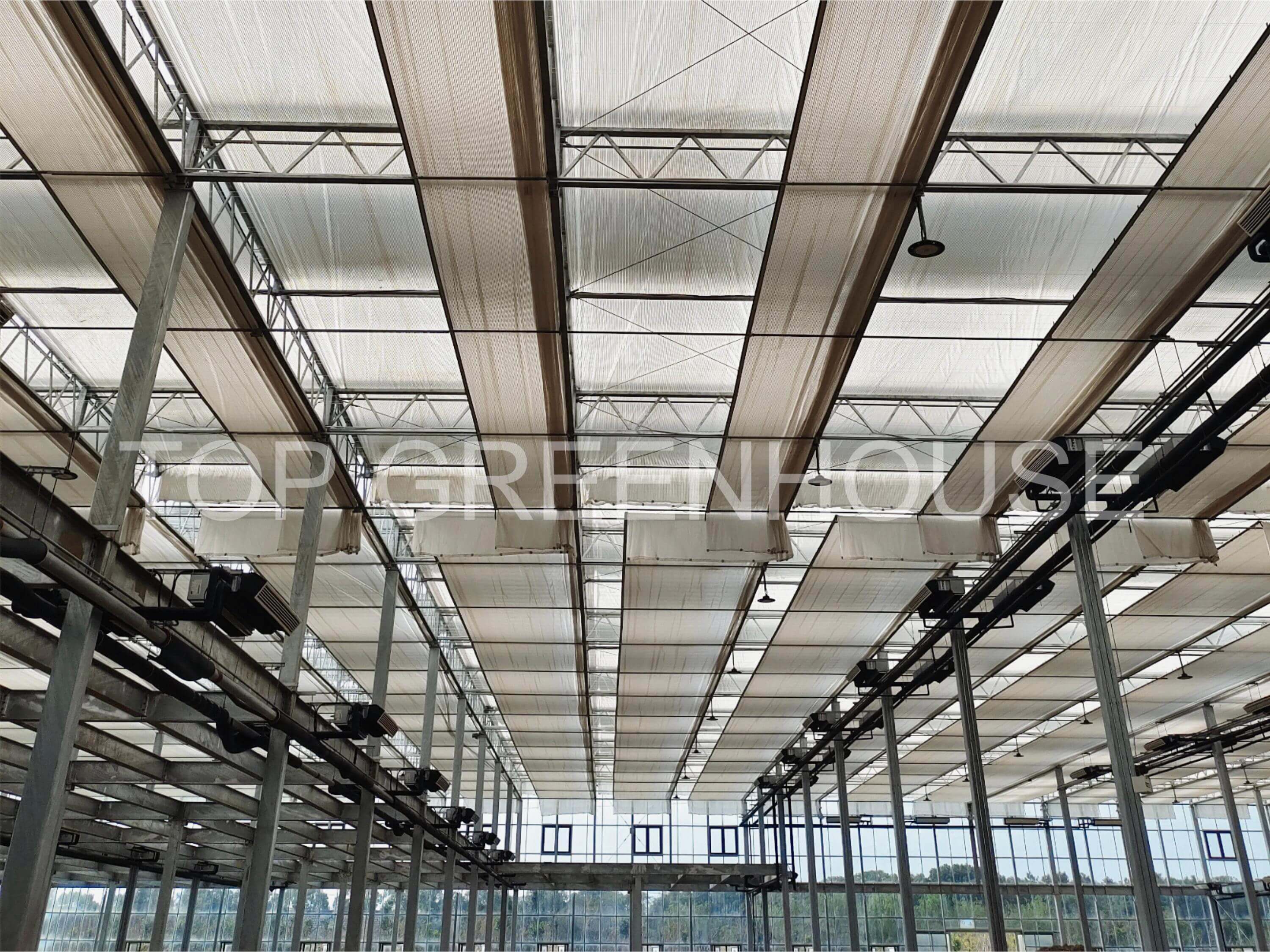

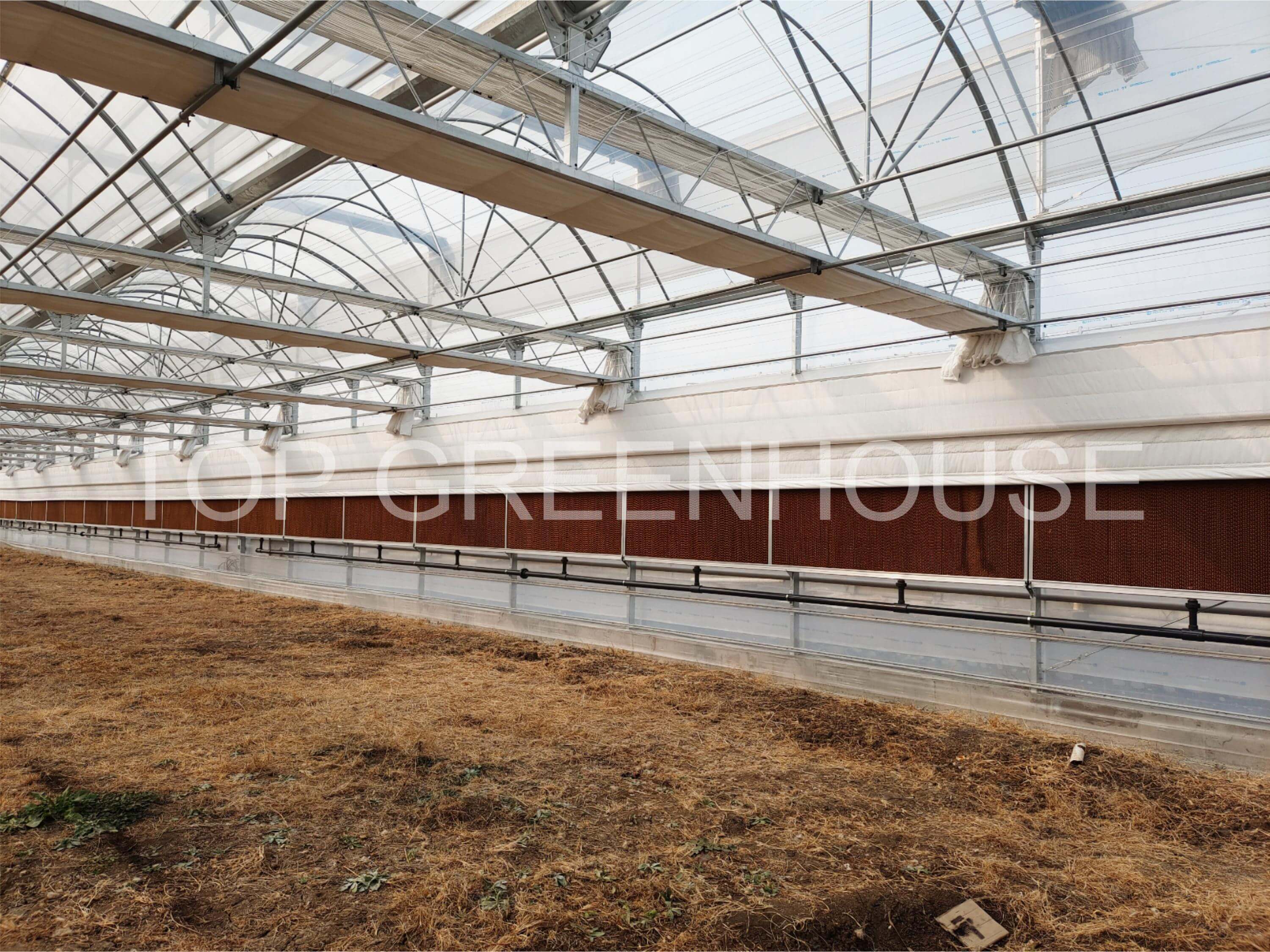

It is composed of screen skeleton, driving mechanism, curtain line, screen, control part, it realize the function by adjusting the coverage and opening and closing degree of the sunshade net, thereby reducing the greenhouse light intensity and reducing the temperature in the shed. If you have the demands of greenhouse inside screen system, as a 14-year greenhouse supplier in china, you can trust to purchase.

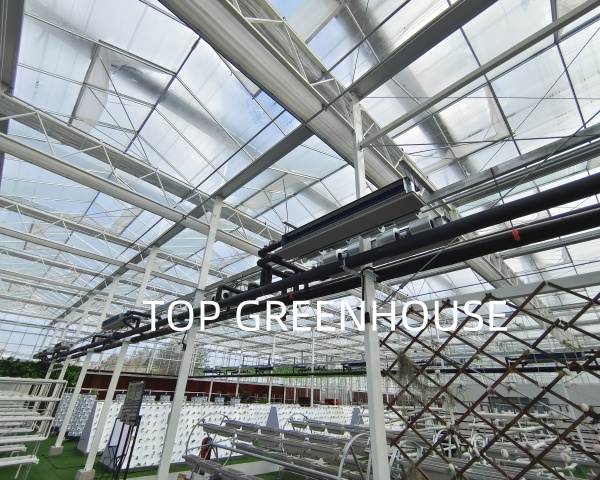

The driving components of the sunshade system are mainly composed of decelerating motor, drive shaft, gear, rack, push rod, support wheel, etc. The drive shaft machine is connected with the gear of the reduction motor.
When the reduction motor is working, the drive belt gear rotates. The gear drives the rack to walk, and the push rod is connected with the rack,thus driving the expansion and closure of the moving sunshade net.
The core value of aluminum foil shade net is to dynamically regulate the light and thermal environment, which is especially suitable for high value-added and quality-sensitive crops.

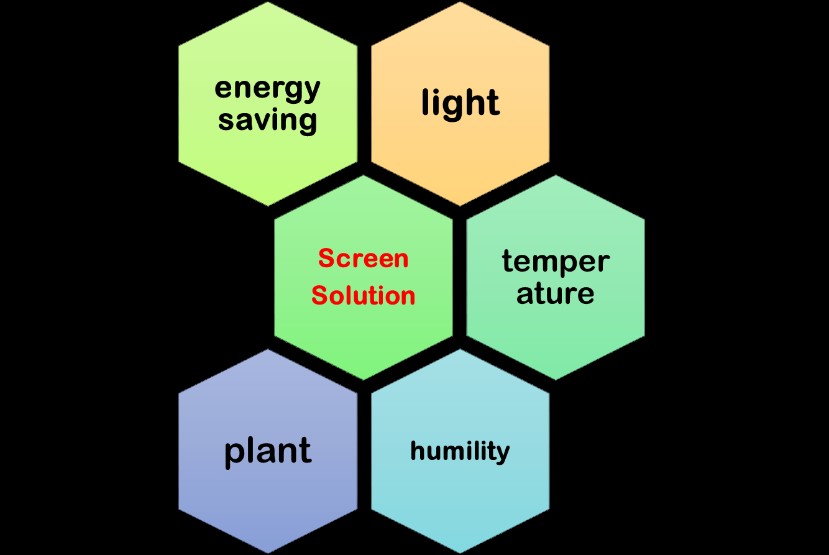

Actual selection should be combined with the light，temperature，humility，crop ，energy saving.
| shade rate | application | light transmission | the cooling effect |
| 30%-50% | Light-loving crops, low light environment in winter | 50%-70% | 2-5℃ |
| 50%-70% | Neutral crops, temperate summers | 30%-50% | 5-10℃ |
| 70%-90% | Shade-loving crops, tropical light environment | 10%-30% | 10-15℃ |
Material: High weight HDPE (≥120g/㎡) + anti-UV layer.
Advantages: Directly block the sun, cooling effect is significant.
Application: high temperature, hail area.
Material: Lightweight PP or HDPE (80~100g/㎡), aluminum foil reflector facing down.
Advantages: Thermal insulation + diffuse reflection, suitable for winter or large temperature difference between day and night.
Shading rate is reduced by 5% to 10%, and ventilation is enhanced (suitable for high humidity environment).
Directional ventilation, suitable for crops requiring stable airflow (such as strawberries).
Such as orchids, ferns, edible fungi
Shading rate: 70%~90%
Aluminum foil type: high reflection white to avoid direct light burning the blade.
Additional functions: need to cooperate with humidity control, choose the knitting structure with good air permeability.
Such as tomatoes, cucumbers, leafy vegetables
Shading rate: 40%~60%
Aluminum foil type: silver white or black and white double-sided (white side to reflect light, black side to absorb heat).
Special requirements: uniform illumination is required during the result period, and aluminum foil mesh with strong diffuse reflection performance is selected.
Such as watermelon, grapes, citrus
Shading rate: 30%~50%
Aluminum foil type: Low shading rate aluminum foil mesh or strip hole design to ensure sufficient light while preventing sunburn.
aluminum screen
aluminum screen
aluminum screen
Model | Material | Strip Structure | System | Width | Application | Flame-retardant | ||
| DIAl 55 | 61% polyester, 39%aluminum | 1 aluminum, 1 transparent | sliding,hanging | 430cm | inside system | no | ||
| DIAl 65 | 46% polyeser, 54% aluminum | 2 aluminum, 1 transparent | no | |||||
| DIAl 75 | 49% polyester, 51% aluminum | 3 aluminum, 1 transparent | no | |||||
| DIAl 55 FR | 11% polyester，44% aluminum， 27% polyester，18% modacryl | 1 aluminum, 1 transparent | yes | |||||
| DIAl55 V FR | 13% polyester，54% aluminum， 33% polyester | 1 aluminum, 10 open, 1 aluminum, 10 open, 1 transparent | yes | |||||
| Model | Mechanical properties | Physical property | |||||
| Weight (g/㎡) | Film strip width (mm) | Direct light (%) | Scattered Light (%) | Shade rate (%) | Energy saving rate (%) | ||
| DIAl 55 | --- | 4.0 | 45 | 39 | 55 | 57 | |
| DIAl 65 | --- | 4.0 | 31 | 29 | 69 | 65 | |
| DIAl 75 | --- | 4.0 | 25 | 22 | 75 | 67 | |
| DIAl 55 FR | --- | 4.0 | 45 | 41 | 55 | 55 | |
| DIAl55 V FR | --- | 4.0 | 47 | 43 | 53 | 20 | |

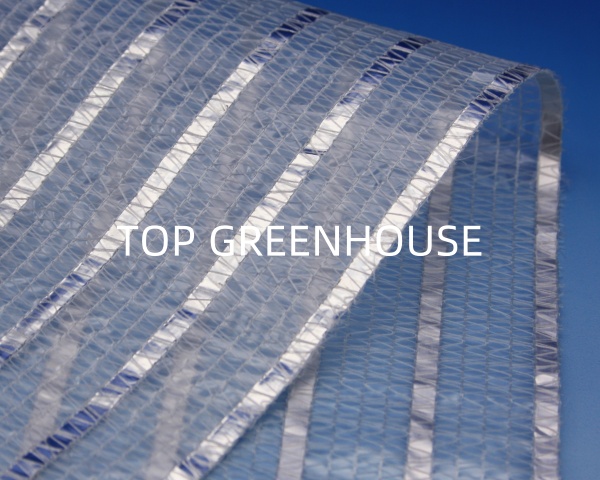

DIAI35

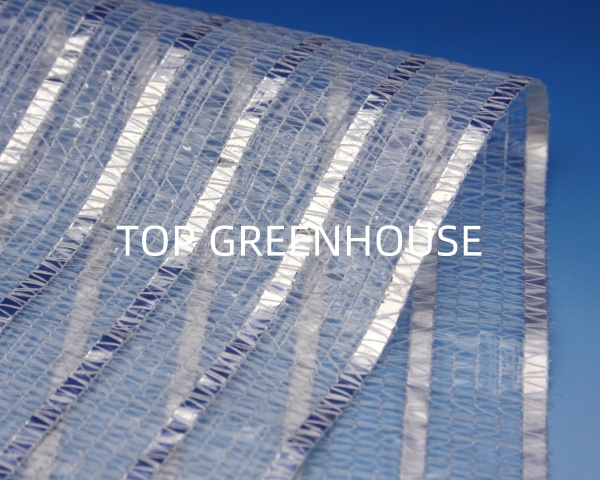

DIAI35 FR

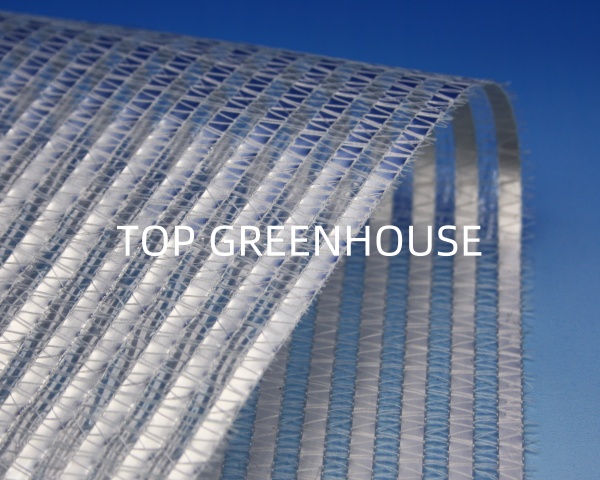

DIAI55

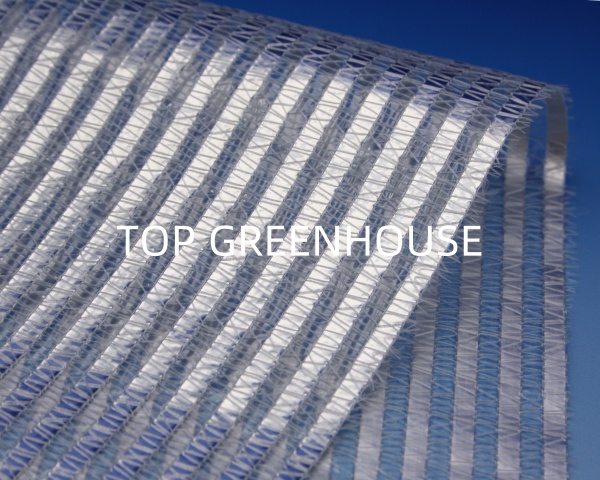

DIAI55 FR

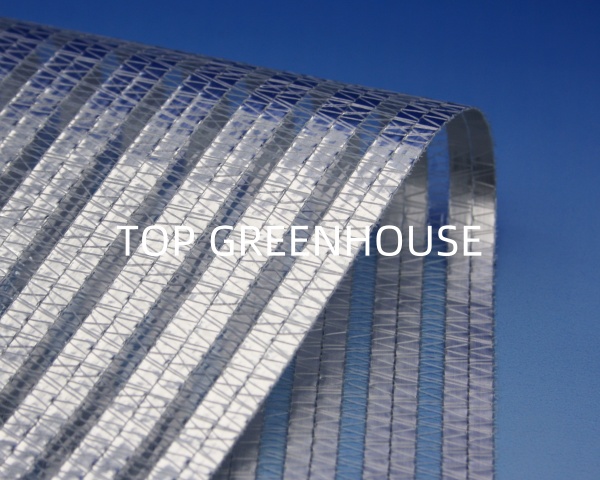

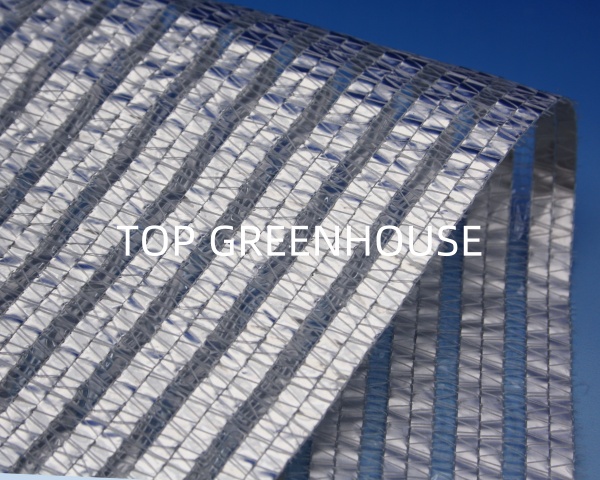

DIAI65
DIAI65 FR

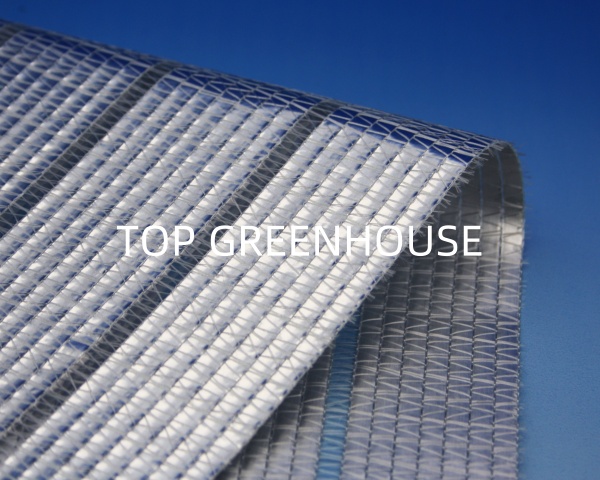

DIAI85

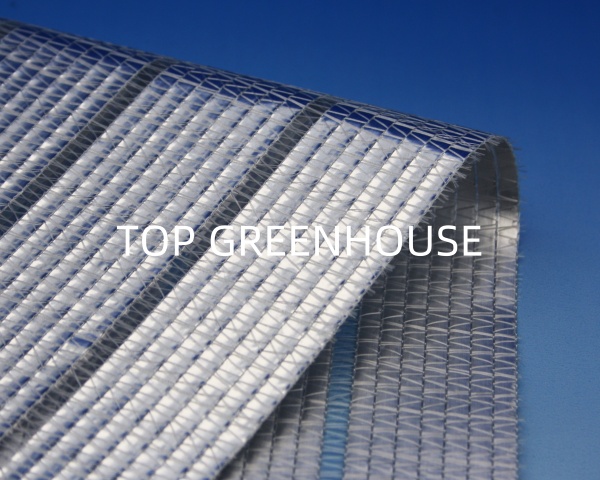

DIAI85 FR
Reflecting part of the sunlight (regulating the effective radiation synthesis of PAR light) to avoid burning crops.
By reflecting infrared to reduce the greenhouse temperature (can drop 3-8℃), reduce air conditioning energy consumption.
Closing at night can reduce heat loss (especially with double shading system).
Some dew resistant models reduce condensation and reduce the risk of disease.
Part of the design can work with the spray system to evenly distribute water mist.
APPLICATION FOR GREENHOUSE SHADING NET

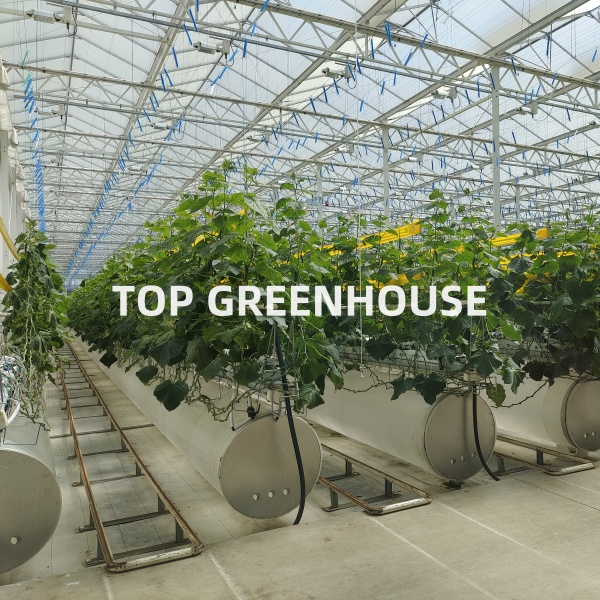

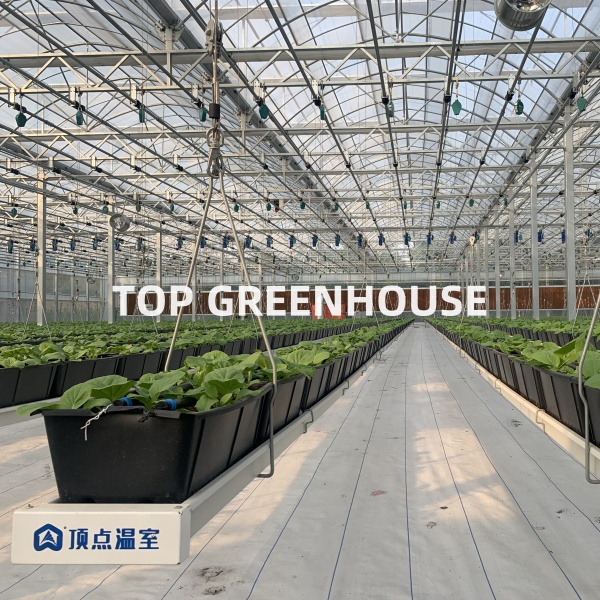

Vegetable Greenhouse
Fruit Greenhouse
Flower Greenhouse
Seedling Greenhouse
Aquaculture Greenhouse
Laboratory Greenhouse
Commercial Greenhouse
Restaurant Greenhouse
The aluminum shading net is a woven mesh made from aluminum strips or threads, designed to reflect sunlight and reduce heat buildup in greenhouses.
It also depends on your climate. Hotter regions may benefit from higher shading percentages.
40%-50%
Ideal for crops that love the sun—think tomatoes or peppers.
60-70%
Suitable for leafy greens like lettuce or spinach.
80%+
Best for nurseries or shade-loving plants like orchids or ferns.
Crop type, Sunlight intensity, Budget, Installation type (internal/external).
On average, they can last 5 to 10 years, depending on the quality and care.
5 years.
