A Film Vegetable Greenhouse is an agricultural facility that uses plastic film as its primary covering material, designed specifically for vegetable cultivation. By creating a controlled environment for temperature, light, and humidity, it enables off-season production, pest and disease protection, and increased yields. With its low cost, high flexibility, and significant productivity benefits, the film greenhouse has become the preferred choice for small and medium-scale farmers and agricultural cooperatives in temperate and subtropical regions worldwide. This article provides a comprehensive analysis of its structure, functions, applications, and future development trends.

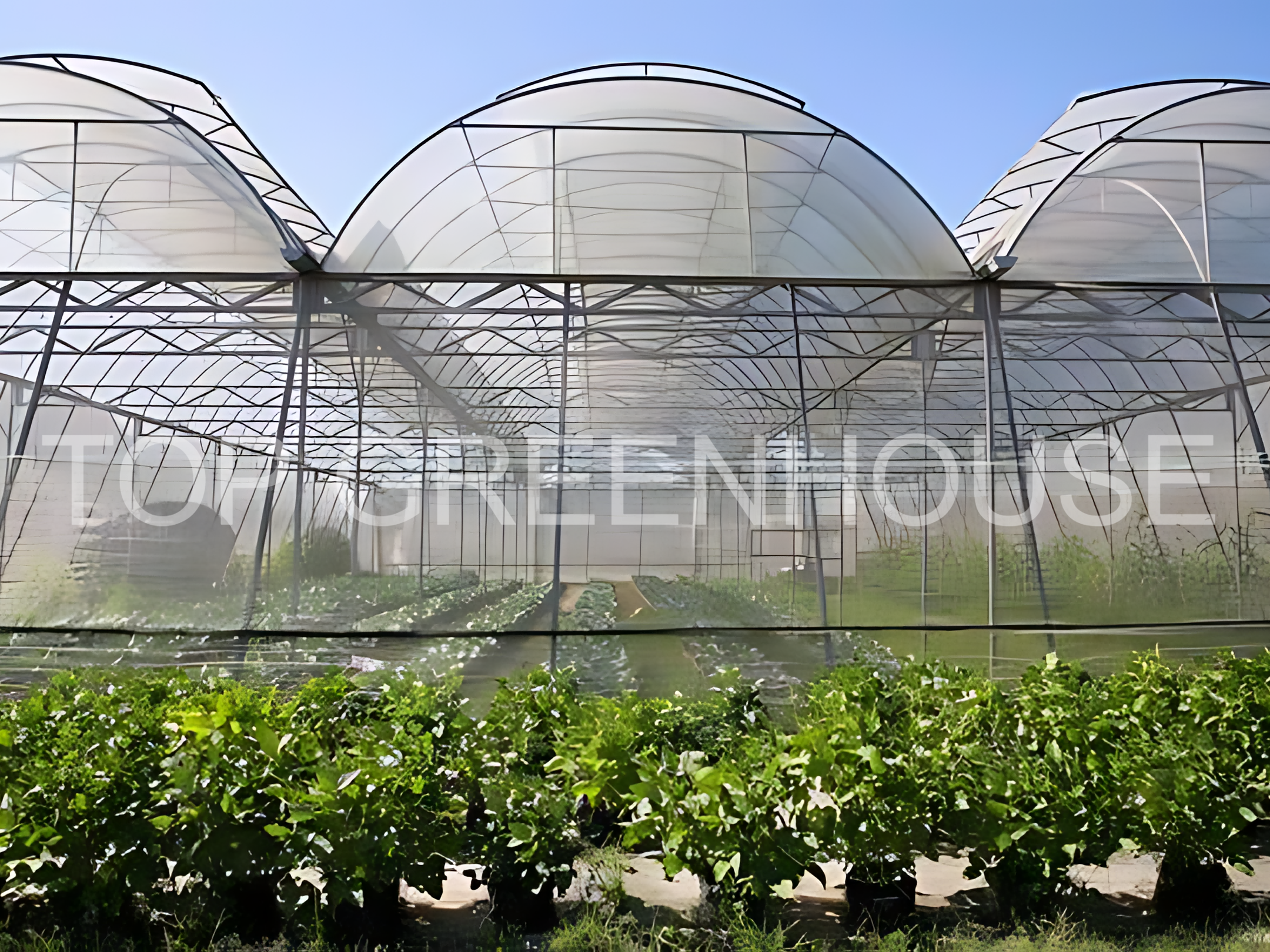

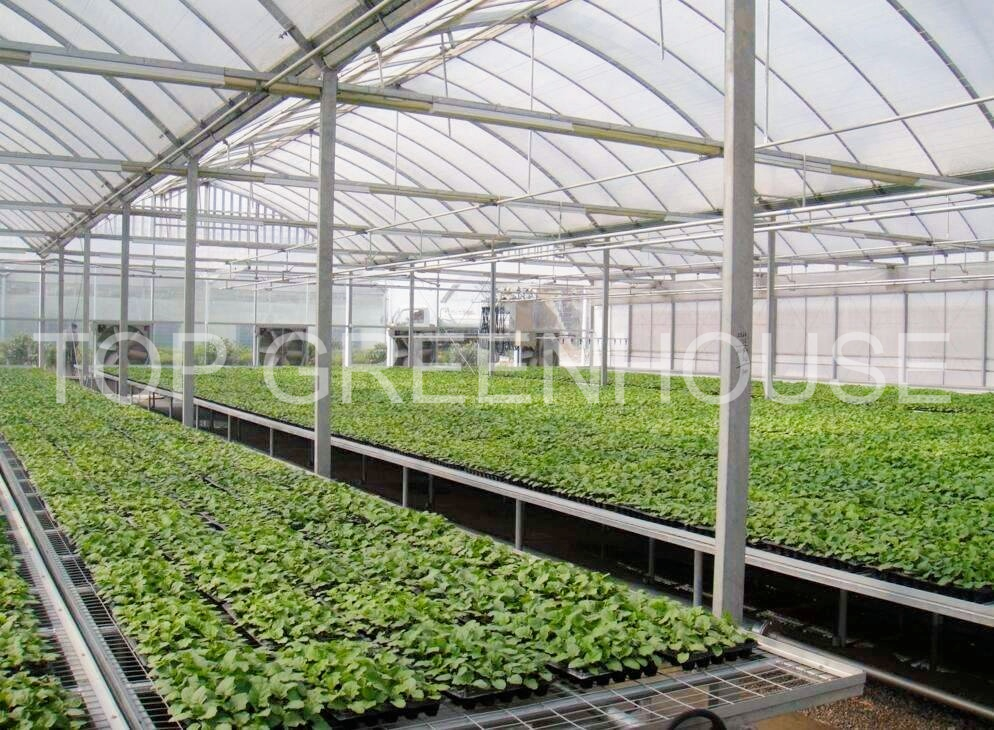

Modern Film Greenhouse Design
The structural design of a film vegetable greenhouse prioritizes cost-effectiveness and functionality to meet diverse climatic and cultivation needs. Below are its main components:
The framework serves as the structural backbone, balancing strength and affordability:
Materials: Commonly used materials include galvanized steel pipes (rust-resistant and durable), bamboo or wood (low-cost and readily available), or composite materials (lightweight and corrosion-resistant).
Forms: Configurations include arched (tunnel-style, simple to construct), sawtooth (excellent ventilation), or multi-span structures (suitable for large-scale production). Different forms suit varying climates, with arched designs ideal for low-wind or low-snow areas and multi-span structures for centralized management.
Design Considerations: Frameworks must account for wind and snow resistance, with typical spacing of 0.8–1.2 meters to ensure stability.

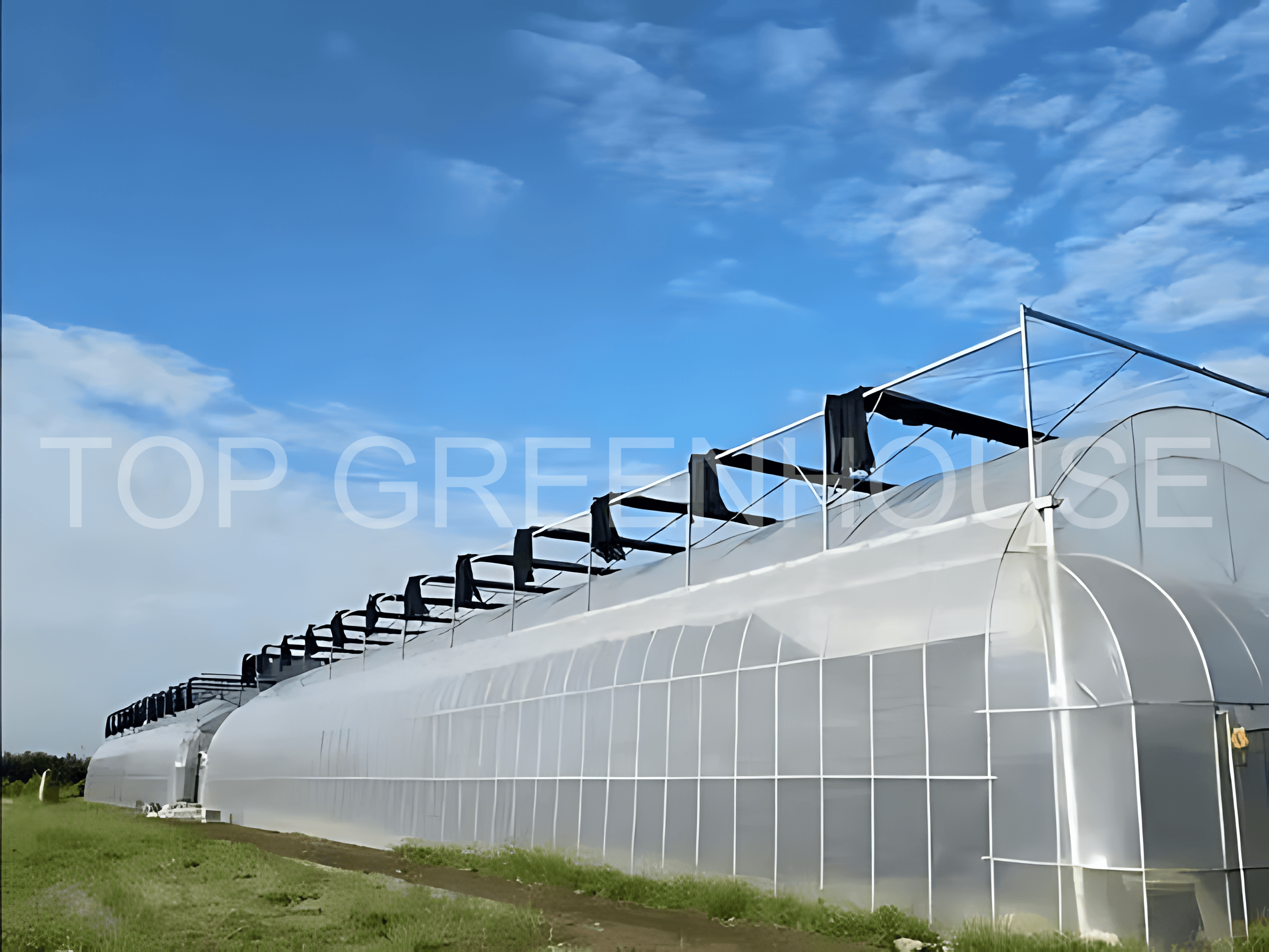

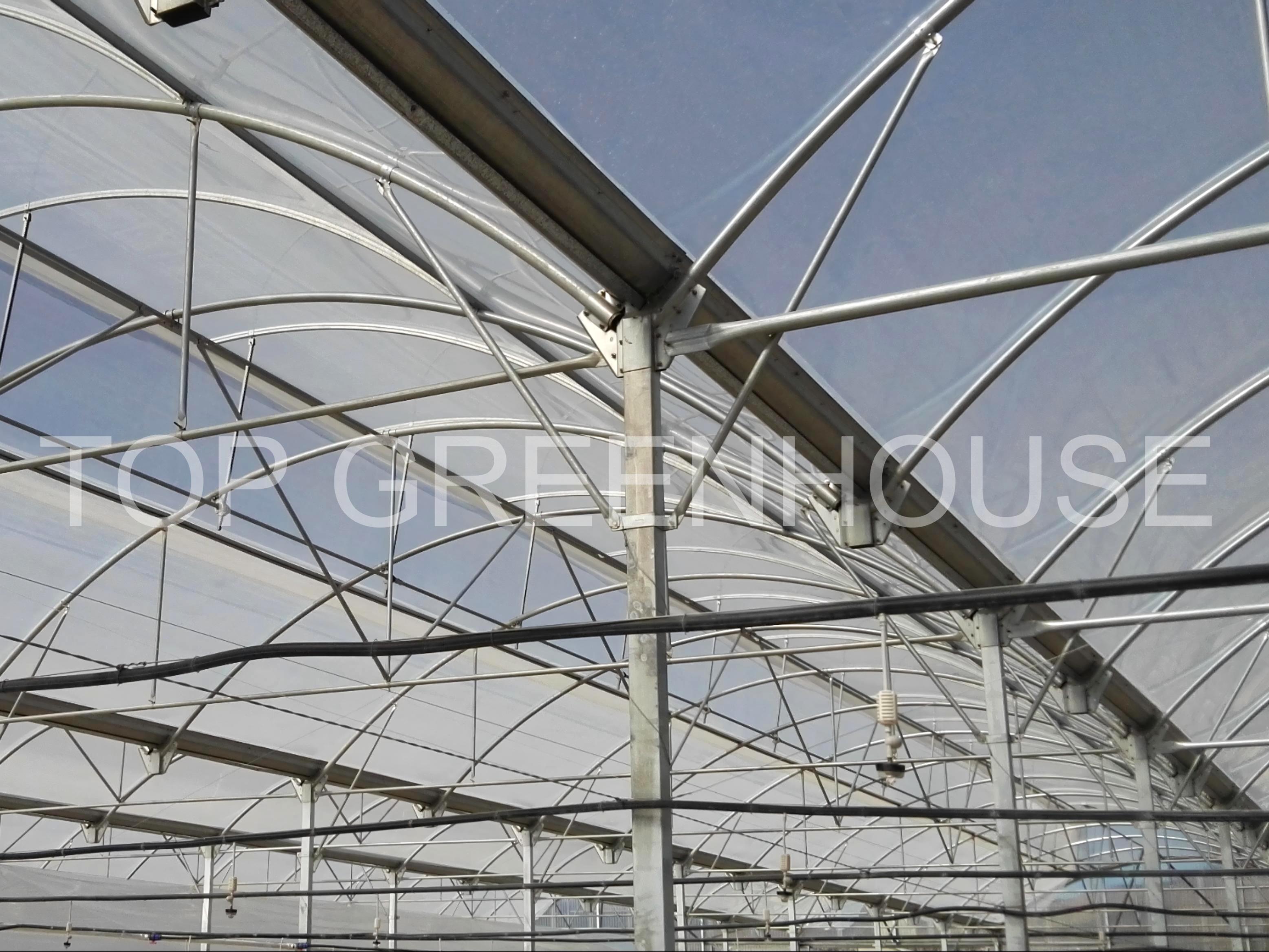

Galvanized Steel Framework Structure
The plastic film is the core functional component, directly impacting cultivation outcomes:

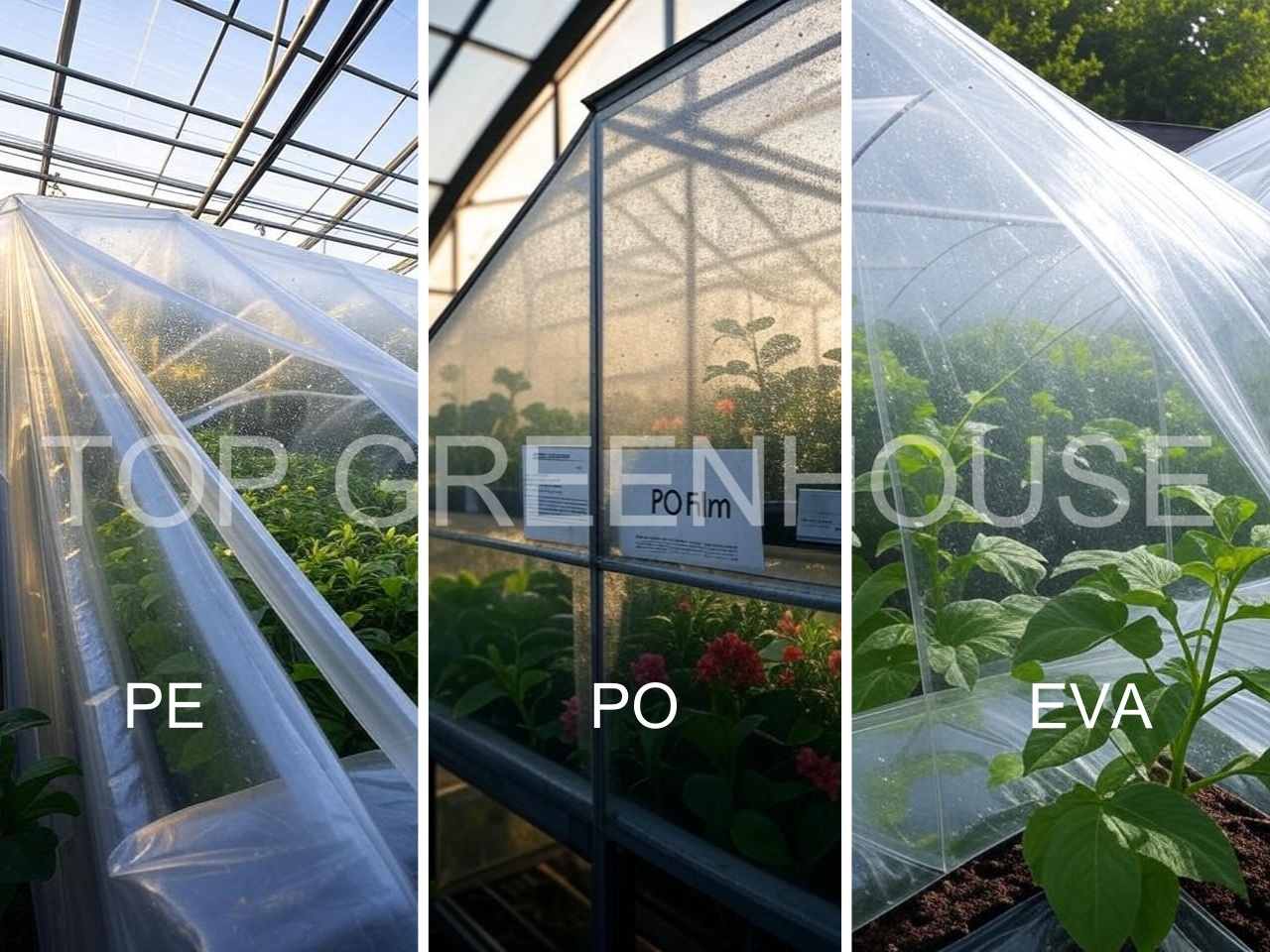

Material Types:
PE (Polyethylene): Cost-effective, with light transmittance of 85%–90%, lasting 1–3 years, suitable for short-term investments.
EVA (Ethylene-Vinyl Acetate): Strong insulation, ideal for cold regions, with a lifespan of 2–4 years.
PO (Polyolefin): High light transmittance (>90%), anti-aging (lasting 5–8 years), and excellent anti-drip properties, representing the premium choice.
Functional Features:
High Light Transmittance: Premium films exceed 90% transmittance, maximizing photosynthesis and promoting crop growth.
Insulation: Infrared-blocking properties reduce nighttime heat loss, extending the growing period.
Anti-Drip Treatment: Prevents condensation droplets from falling, avoiding leaf burn or disease induction.
UV-Resistant Additives: Extend film lifespan, reducing replacement frequency.
Selection Tips: Choose film types based on budget and climate. EVA or PO films are preferred in cold regions, while anti-drip films are essential in rainy, humid areas.
Film greenhouses create an optimal microclimate for vegetable growth, delivering the following functions and benefits:
| Function | Mechanism | Cultivation Benefits |
|---|---|---|
| Temperature Regulation | Blocks cold air, absorbs, and stores solar energy | Enables winter production of warm-season crops (e.g., tomatoes, cucumbers), boosting yields by 20%–40% |
| Humidity Management | Reduces soil evaporation, paired with ventilation systems | Lowers fungal disease risks (e.g., powdery mildew), cutting pesticide use by over 50% |
| Pest and Disease Control | Physically isolates pests, fungal spores, and heavy rain | Reduces reliance on chemical pesticides, supporting organic production |
| Extended Growing Season | Enables early spring planting and late autumn harvesting | Increases yields by 30%–50%, with off-season sales boosting market prices |
Above are the core functions and benefits of modern film greenhouses that make them essential for efficient vegetable production.

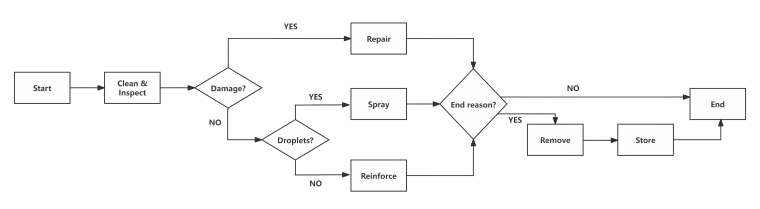

Film is the core covering material of a vegetable greenhouse. Its maintenance directly affects light transmission, insulation, lifespan, and the growing environment.
Inspect film surfaces (inside & out) weekly.
Focus on areas prone to friction/stress: arches, purlins, clamping channels, film clamping wires, vent edges, door frames, ground contact points.
Look for: scratches, holes, tears, adhesive failure, bubbles, slack, dust buildup, water stains (internal condensation), algae growth.
Smooth Structure: Ensure all framework (steel pipes, bamboo/wood) contacting the film is smooth (no burrs, weld spatter, sharp edges). Wrap contact points with old film, cloth, or specialized tape if needed.
Film Clamping Wire Management:
Use wide, smooth specialized film clamping straps or nylon cord. Avoid thin wires or narrow ropes that can cut film.
Maintain moderate tension. Overtightening accelerates aging/tearing; loose wires cause wind-induced friction against the frame. Check/adjust tension after strong winds.
Prevent Human Damage: Handle tools/equipment carefully inside the greenhouse to avoid collisions/scraping. Train staff on film protection.
Install film tightly and smoothly, without wrinkles. Wrinkles trap water/dust, accelerate aging, and cause wind damage.
Film relaxes over time and with temperature changes. Regularly check and re-tension (especially after season changes or strong winds).

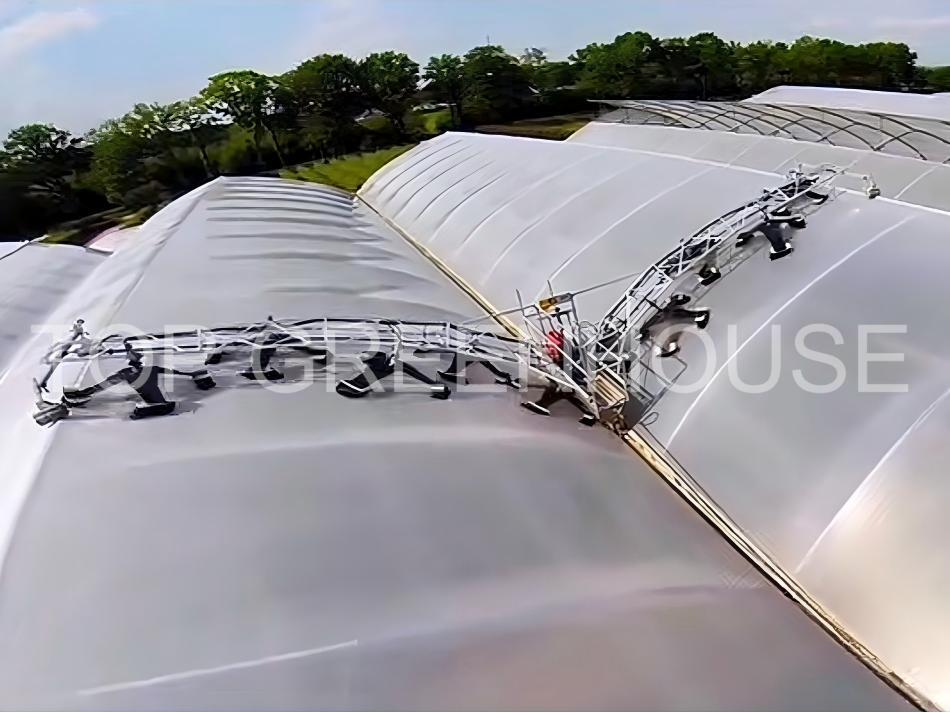

Purpose: Remove dust, dirt, bird droppings, pollen to restore light transmission (dust can reduce it by 15-30%+).
Timing: Clean on windless/calm, cloudy days or during early morning/evening. Avoid hot, sunny periods (film softens, easily damaged).
Methods:
Soft Brush/Long-Handle Mop + Water: Safest & most common. Use soft bristles/pad, gently brush top-down.
Low-Pressure Water Spray: Effective, but use low pressure (mist/fan spray) only. High pressure can puncture film. Maintain distance.
Precautions:
Avoid Hard Objects: Never use brooms, shovels, stiff brushes.
Use Cleaners Sparingly: Use only water unless greasy. For tough grime, use neutral/mild alkaline cleaners (e.g., diluted dish soap) and rinse thoroughly. Avoid strong acids/alkalis/solvents (e.g., gasoline, alcohol) – they corrode film. Test cleaners on a small area first.
Safety First: Use stable ladders/harnesses for roof cleaning. Work with a partner if possible.
Purpose: Remove internal water stains (from condensation runoff), dust, algae, pest/disease residues.
Method: Clean similarly with soft brush/mop + water. Avoid splashing water onto plants (can spread disease).
Algae/Bacteria Control: If algae forms (green, slimy), clean and apply specialized anti-algae treatment (follow instructions). Improve ventilation to reduce humidity.
Use transparent, weather-resistant greenhouse film repair tape (butyl, PE).
Steps: Clean area (dry, dust/oil-free) -> Cut tape larger than hole -> Apply from center outwards, pressing firmly to remove air bubbles.
Avoid: Regular clear tape (poor adhesion/weather resistance).
Use specialized film repair patches (often self-adhesive).
Steps: Clean area -> Cut patch 10-15cm larger than damage -> Remove backing -> Align carefully, press from center outwards, ensuring complete edge seal.
Heat Welding: For PE/EVA films, use a specialized iron or heat gun with matching film patch for welding (requires skill/tools).
Stitching: For large tears, reinforce patch edges with fine nylon thread.
If film pulls out of clamping channels/rails, reinstall and secure tightly, smoothly, and wrinkle-free.
Wind Protection:
Ensure clamping system is secure.
Plant windbreaks (at a distance) around the greenhouse.
Check/reinforce weak points before high winds.
Snow Protection:
Clear snow promptly (especially overnight snow) to prevent frame collapse/film tearing. Use soft snow rakes, push gently upwards from inside. Avoid sharp tools. Add temporary supports if needed.
Hail Protection:
Monitor forecasts. If hail is expected, temporarily cover film with shade netting or old straw mats for cushioning (remove after). Install hail netting (over the film) if possible.
Extreme Heat Protection:
Summer heat/UV radiation accelerates aging. Use shade nets to lower temperature/UV exposure, significantly extending film life.
Invest in high-quality film with UV stabilizers & anti-aging additives (e.g., PO film, high-transmission EVA). Higher initial cost, but longer lifespan and better ROI.
Internal Anti-Drip:
Choose film with anti-drip treatment to reduce internal condensation/dripping, maintain light transmission, and lower disease risk.
Enhance ventilation/dehumidification, especially at night/dawn.
Seasonal Overhaul:
During crop rotation breaks: Thoroughly clean film (inside & out).
Inspect film condition, repair all damage.
Check/adjust clamping wire tension.
Inspect/reinforce all frame connections.
Proper Removal & Storage:
Remove Carefully: Avoid rough pulling/cutting.
Clean Thoroughly: Clean before or after removal.
Dry Completely: Ensure film is fully dry before folding.
Cool, Dry, Dark Storage: Fold neatly (avoid sharp creases). Store in a cool, dry, dark, rodent-proof place. Avoid heavy objects on top.
If removing film off-season:
Note: Frequent removal/installation damages film. Avoid if possible; continuous covering is preferable.
Timely Replacement:
Severe aging (brittle, stiff, tears easily).
Significant yellowing/hazing, low light transmission (<50%).
Failed anti-drip function.
Excessive patching affecting performance/aesthetics.
Film has a lifespan (Standard PE: 1-3 years; Quality PO/EVA: 3-5+ years). Replace when film shows:
Choosing New Film: Select high-transmission, insulating, UV-resistant, anti-drip film suitable for your climate, crops, and budget.
Prevention First: Minimize damage sources is paramount.
Regular Inspection: Early detection, early action.
Gentle Handling: Clean and repair carefully.
Prompt Repair: "A stitch in time saves nine."
Smart Investment: Quality film and components pay off long-term.
Safety First: Prioritize personal safety in all maintenance tasks.
Systematic implementation of these measures maximizes vegetable greenhouse film lifespan, maintains optimal light/heat transmission, ensures a stable growing environment, and ultimately boosts production efficiency.
Film vegetable greenhouses, with their cost-effectiveness, flexibility, and high efficiency, are an ideal carrier for facility agriculture. Through the synergy of "sunlight, film, and structure," they transform open-field farming into a controlled production system, significantly boosting yields and profitability.
Looking ahead, advancements in smart technologies (e.g., IoT, automated irrigation) and new materials (e.g., durable PO films) will further enhance their potential, helping farmers overcome natural limitations and achieve sustainable, high-efficiency cultivation.
Keys to Success: Select the right film, maintain diligently, and adopt smart technologies appropriately. Film greenhouses are not only a profit-enhancing tool for farmers but also a cornerstone of green, efficient modern agriculture.
