How Much Does A Greenhouse Ebb And Flow Bench Cost? - A Complete Price Guide for Commercial Growers 2026

What Is a Greenhouse Ebb and Flow Bench?

A greenhouse ebb and flow bench, also known as a flood and drain bench or flood table, is a cultivation bench designed to irrigate plants from below.

Instead of spraying water over plants from above, the system temporarily floods the growing surface with water or nutrient solution. Plants absorb moisture through drainage holes in their pots or growing containers. After the irrigation cycle is complete, the water drains back into a reservoir and can be reused.

This creates a controlled irrigation cycle that can improve water and fertilizer utilization while reducing unnecessary runoff.

Ebb and flow benches are commonly used for:

• Vegetable seedling production

• Flower production

• Ornamental plants

• Nursery plants

• Young plants and transplants

• Plant propagation

• Research greenhouses

• Commercial horticultural production

For larger greenhouse projects, the ebb and flow bench can also be integrated with irrigation, fertigation, and greenhouse automation systems.

How Does an Ebb and Flow Bench System Work?

The operating principle of an ebb and flow bench is simple, but the system can be designed with different levels of automation depending on the scale of the greenhouse project.

During the flooding cycle, a water pump transfers water or nutrient solution from a storage tank into the bench tray. The water level gradually rises until it reaches the required level.

Plants placed on the bench absorb water through the drainage holes in their containers. The growing media gradually takes up moisture and nutrients according to the requirements of the crop.

After the required irrigation time, the pump stops and the nutrient solution drains from the bench. The solution returns to a collection tank through the drainage system.

The growing media is then allowed to drain and reintroduce oxygen into the root zone.

The collected water can be filtered and reused in a subsequent irrigation cycle. This closed-loop approach can help reduce water consumption and fertilizer losses.

For commercial greenhouses, the irrigation process can be automated according to:

• Crop type

• Plant growth stage

• Growing media

• Temperature

• Humidity

• Irrigation frequency

• Production schedule

Advanced systems may use sensors and controllers to manage irrigation cycles automatically.

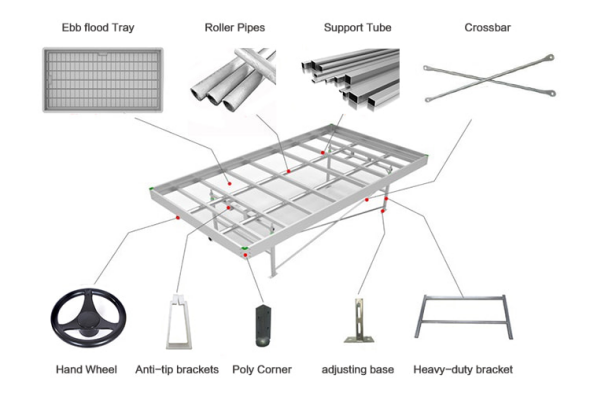

Main Components of a Commercial Ebb and Flow Bench System

A complete commercial ebb and flow bench system normally consists of several components.

The bench structure supports the flood tray, growing containers, and plants. Depending on the project, the structure can be manufactured from aluminum or galvanized steel.

The flood tray provides the waterproof growing surface where plants are placed. It needs to withstand repeated exposure to water, fertilizer, and cleaning processes.

The water tank and pump system supplies water or nutrient solution to the benches.

The drainage and recycling system returns water to the reservoir after each irrigation cycle.

The control system manages irrigation timing, water levels, pumps, valves, and other automated functions.

For advanced commercial projects, the system may also include:

• Fertigation equipment

• EC and pH control

• Automatic valves

• Sensors

• PLC control cabinets

• Greenhouse climate computer integration

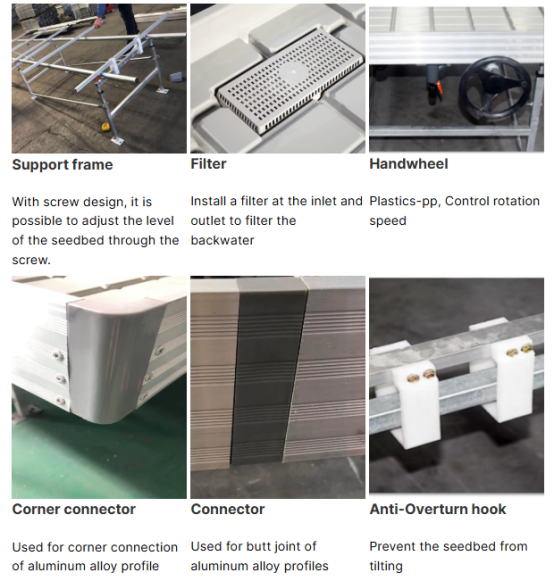

Feature: corrosion resistance, anti-aging, acid and alkali resistance, non-fading, bright and smooth surface, strong and durable

The final greenhouse ebb and flow bench price depends on the specifications and quality of all these components.

How Much Does an Ebb and Flow Bench Cost in 2026?

There is no single standard price for every ebb and flow bench.

A supplier quotation can vary significantly depending on whether the customer needs a simple fixed bench for a small nursery or a fully automated commercial system for a large greenhouse.

The following price ranges can be used as a general reference for preliminary project budgeting.

Basic Ebb and Flow Bench Cost

Estimated price: USD $45–120 per m²

A basic ebb and flow bench system is generally suitable for smaller nurseries, research greenhouses, garden centers, and growers who do not require extensive automation.

A basic configuration may include:

• Fixed bench structure

• Standard flood tray

• Basic water circulation

• Simple drainage

• Manual or timer-based irrigation

The main advantage is the lower initial investment.

For growers with a smaller production area, this can be a practical option for introducing ebb and flow irrigation without investing in a highly automated system.

However, a basic system may require more manual operation and may provide fewer options for future automation.

Example Investment Cost for Different Greenhouse Sizes

The following examples are only preliminary budget references. Actual quotations can vary depending on project specifications.

For a 1000 m² nursery, a basic ebb and flow bench system may require approximately USD $45,000–120,000 when considering the benches and basic irrigation equipment.

Here is a BOM for reference from a Chinese rolling bench manufacturer.

What Factors Affect Greenhouse Ebb and Flow Bench Prices?

The price of an ebb and flow bench is influenced by several technical and commercial factors.

Bench Size and Greenhouse Layout

Bench dimensions are among the first factors considered when preparing a quotation.

Common bench widths may include approximately:

1.7 m and 1.8m width are common.

The length can also be customized according to the greenhouse layout.

A commercial project may need to consider:

• Greenhouse span

• Internal columns

• Working aisles

• Irrigation zones

• Equipment access

• Crop transportation routes

Optimizing the layout can increase the effective growing area while maintaining sufficient space for workers and equipment.

For large projects, a professional manufacturer should ideally design the bench arrangement together with the greenhouse layout.

Material and Manufacturing Quality

Material selection has a direct influence on price, durability, and service life.

Aluminum benches are popular because they are lightweight and highly resistant to corrosion in humid greenhouse environments.

Galvanized steel benches can provide high structural strength and competitive pricing for applications requiring greater load capacity.

The manufacturing process also matters.

Buyers should consider:

• Material thickness

• Structural design

• Welding quality

• Surface treatment

• Corrosion resistance

• Load capacity

A low-cost bench with poor structural quality may result in higher maintenance costs over time.

Therefore, when comparing quotations, buyers should always compare the technical specifications rather than looking only at the final price.

Fixed vs. Mobile Rolling Bench Design

Fixed benches are generally simpler and less expensive.

They are permanently installed in a specific position and normally require permanent working aisles.

Mobile rolling benches can move horizontally within the greenhouse.

By moving benches closer together when workers are not operating between them, a mobile system can reduce unnecessary aisle space and potentially increase the effective production area.

However, mobile systems require additional components and more careful layout planning.

The choice between fixed and mobile benches should depend on:

• Greenhouse size

• Crop type

• Production density

• Labor requirements

• Available budget

• Future expansion plans

Automation Level and Control System

Automation is another major factor affecting the total price.

A basic system may use manual valves and timers.

A commercial system may use automatic irrigation control.

A high-tech greenhouse can integrate the ebb and flow benches with:

• PLC control

• Sensors

• Automatic valves

• Fertigation

• EC and pH management

• Climate control

The higher the automation level, the higher the initial investment will generally be.

However, automation may also reduce labor costs and improve production consistency.

Project Size and Order Quantity

Project size and order quantity can influence the unit cost of greenhouse benches.

Large projects may benefit from:

• Bulk material purchasing

• Standardized manufacturing

• Optimized production

• More efficient packaging

• Better container utilization

For example, a manufacturer producing hundreds or thousands of benches for one commercial greenhouse project may achieve better production efficiency than manufacturing a small number of customized units.

For B2B buyers, it is therefore worth requesting a project-based quotation instead of simply asking for a single-unit price.

Different Types of Ebb and Flow Benches for Commercial Greenhouses

Choosing the right type of ebb and flow bench is an important decision for commercial growers.

Different crops, greenhouse layouts, production scales, and labor requirements may require different bench configurations.

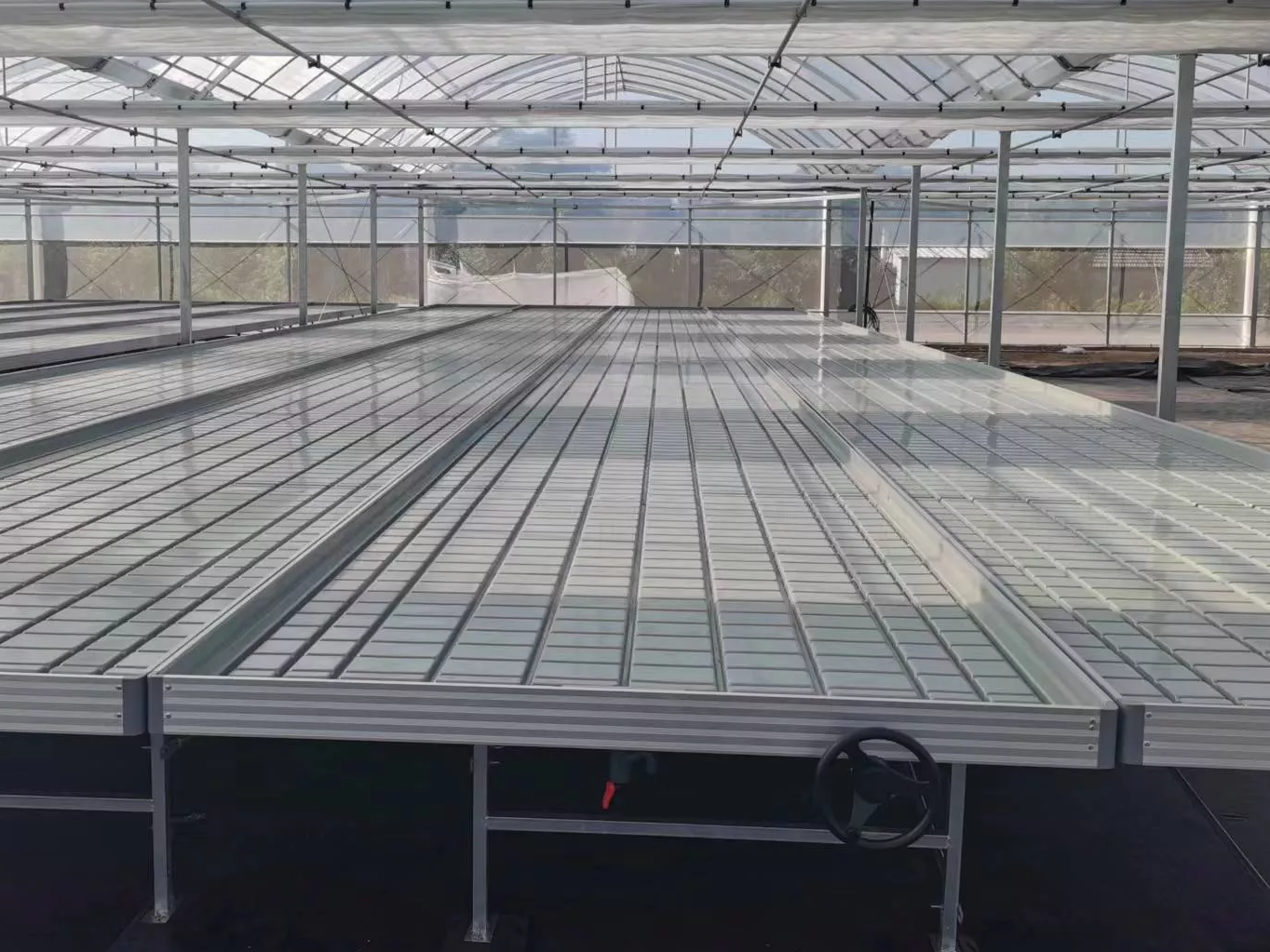

Fixed Ebb and Flow Bench

A fixed ebb and flow bench is the simplest configuration.

The bench is permanently installed in a fixed position inside the greenhouse. Plants are placed on the flood tray, and irrigation is controlled through the ebb and flow system.

Fixed benches are commonly used for:

• Small and medium-sized nurseries

• Seedling production

• Flower cultivation

• Research greenhouses

• Propagation facilities

The main advantage is the relatively low initial investment.

Because the structure is simple, fixed benches are also relatively easy to install and maintain.

The main limitation is that permanent working aisles are required between the growing areas. For large commercial greenhouses, this may reduce the percentage of floor space available for production.

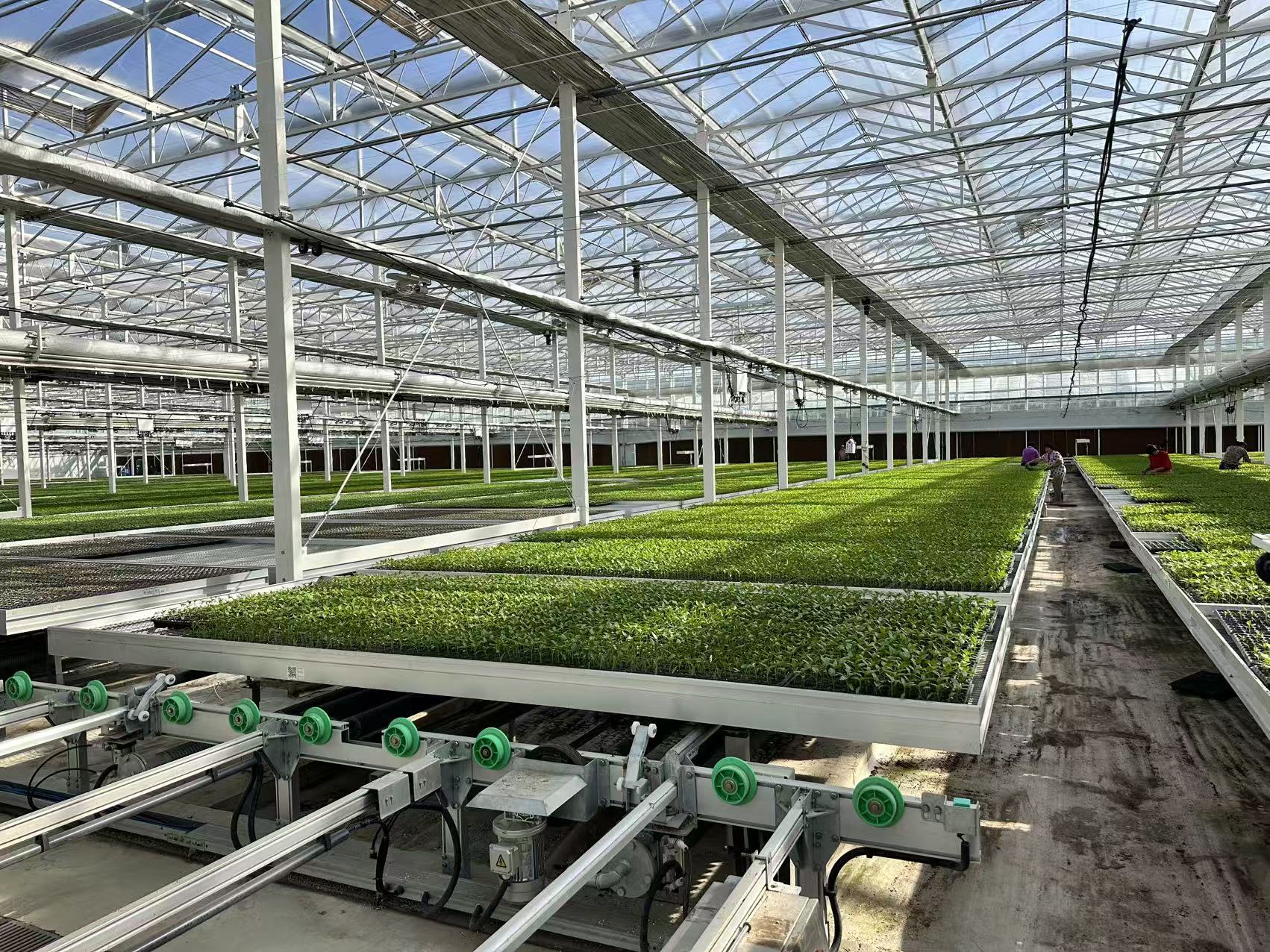

Mobile Rolling Ebb and Flow Bench

A mobile rolling bench is designed to move horizontally within the greenhouse.

When workers need to access plants, the benches can be moved to create a working aisle. When the aisle is not needed, the benches can be moved closer together.

This can increase the effective production area.

Mobile ebb and flow benches are particularly suitable for:

• Commercial nurseries

• Large propagation facilities

• Flower production

• Vegetable seedling production

• High-value plant production

The initial investment is higher than a fixed system because the design may require rolling mechanisms, guide rails, and movement systems.

However, the additional investment may be justified when greenhouse space is expensive or maximizing production capacity is a priority.

Automated and Customized Ebb and Flow Bench Systems

For advanced commercial greenhouse projects, mobile benches and ebb and flow systems can be customized according to specific production requirements.

A customized system may be required because of:

• Special greenhouse dimensions

• Unusual column spacing

• Specific crop requirements

• Heavy plant containers

• Special irrigation requirements

• Integration with existing equipment

Common Customization Options

Custom Bench Dimensions and Load Capacity

Bench width, length, height, and load capacity can be designed according to the greenhouse layout and crop requirements.

Custom Flood Tray, Irrigation, and Automation Requirements

The flood tray, drainage connections, irrigation interfaces, and automation functions can be customized according to the complete greenhouse system.

This is especially valuable for B2B customers purchasing equipment for a new commercial greenhouse rather than buying standard benches individually.

Additional Costs of Installing an Ebb and Flow Bench System

When calculating the total greenhouse ebb and flow bench cost, it is important to consider all associated equipment and services.

The bench itself is only one component of the complete system.

Irrigation and Water Recycling System

A commercial ebb and flow system normally requires a complete water circulation system.

Depending on the greenhouse size, this may include:

• Water storage tanks

• Pumps

• Main irrigation pipes

• Branch pipes

• Filters

• Valves

• Drainage pipes

• Collection systems

The required capacity depends on the total growing area and the number of irrigation zones.

For larger projects, proper hydraulic design is essential.

If the pump is undersized, flooding may be too slow.

If the drainage system is poorly designed, water may not return efficiently to the reservoir.

Therefore, the irrigation system should be designed together with the bench layout.

Fertigation and Nutrient Management

For growers producing high-value crops, the ebb and flow system can be integrated with fertigation equipment.

A fertigation system allows water and nutrients to be supplied according to crop requirements.

More advanced systems may include:

• Fertilizer dosing equipment

• Nutrient mixing tanks

• EC monitoring

• pH monitoring

• Automatic nutrient adjustment

This type of integration increases the initial investment but can improve nutrient management and reduce manual work.

For commercial vegetable seedlings and other high-value crops, precise fertigation can be an important part of the overall production strategy.

Greenhouse Automation and Control

The ebb and flow bench system can also be connected to greenhouse automation equipment.

Depending on the project, automation may control:

• Irrigation schedules

• Water levels

• Pump operation

• Drainage cycles

• Fertigation

• Greenhouse climate

A simple system may only require a timer and control panel.

A more advanced commercial greenhouse may use a PLC system connected to sensors and climate control equipment.

The more functions included in the automation system, the higher the initial investment will generally be.

Installation, Shipping, and Logistics Costs

Installation costs depend on the project location and system complexity.

For international projects, buyers may choose between local installation and manufacturer-supported installation.

A manufacturer may provide:

• Installation drawings

• Product manuals

• Technical instructions

• Remote support

• On-site installation assistance

For complex commercial projects, professional installation may be recommended.

International shipping also affects the total project cost.

The final logistics cost depends on:

• Order volume

• Packaging method

• Destination country

• Shipping route

• Container type

• Incoterms

For large greenhouse projects, equipment is normally shipped in containers.

The best approach is to compare the total landed cost rather than only the factory price.

China Manufacturer vs. Local Supplier: Which Is More Cost-Effective?

When purchasing commercial greenhouse ebb and flow benches, international buyers often compare Chinese manufacturers with local suppliers.

Both options may have advantages, depending on the project requirements.

For large greenhouse projects, purchasing directly from a professional manufacturer in China can provide advantages in terms of manufacturing capability, customization, and project pricing.

Why Buy Ebb and Flow Benches Directly from a Chinese Manufacturer?

Buying directly from a factory can reduce the number of intermediaries involved in the supply chain.

Potential advantages include:

• Factory-direct pricing

• Direct technical communication

• Customized manufacturing

• Better control over specifications

• Large-volume production capability

China also has a mature manufacturing supply chain for greenhouse equipment and agricultural infrastructure.

For large projects, the potential cost difference can become significant.

A direct manufacturer can also coordinate technical details more efficiently than a distributor who only resells standard products.

What Should You Check Before Choosing an Ebb and Flow Bench Supplier?

Price should not be the only factor when selecting a greenhouse equipment supplier.

Before placing an order, B2B buyers should evaluate the supplier's manufacturing capability, product quality, export experience, and technical support.

Manufacturing Capability and Quality Control

A professional factory should have appropriate manufacturing equipment and production processes.

Buyers may check whether the manufacturer has capabilities such as:

• CNC bending

• Laser cutting

• Automatic welding

• Robotic welding

• Hot-dip galvanizing

• Quality inspection

The supplier should also be able to clearly provide technical specifications for:

• Material type

• Material thickness

• Load capacity

• Flood tray material

• Bench dimensions

• Surface treatment

Export Experience and Technical Support

For international buyers, export experience is particularly important.

An experienced supplier should understand:

• International packaging

• Container loading

• Export documentation

• Shipping requirements

• Installation instructions

Technical support may include:

• Installation drawings

• Product manuals

• Spare parts

• Remote technical assistance

• Troubleshooting support

For large commercial projects, long-term technical support can be as important as the initial purchase price.

Find Some Famous Greenhouse Ebb and Flow Bench Manufacturer

Top Greenhouse is a China-based greenhouse equipment manufacturer providing greenhouse structures and cultivation equipment for international commercial greenhouse projects.

For customers looking for ebb and flow benches directly from a manufacturer, our approach focuses on combining customized design, manufacturing capability, and project-oriented technical support.

The Advantages of Top Greenhouse

Professional Greenhouse Equipment Manufacturing

A commercial ebb and flow bench is not always an independent product.

The bench system often needs to work together with:

• Greenhouse structure

• Irrigation

• Fertigation

• Climate control

• Crop production systems

As a greenhouse equipment manufacturer, we focus on designing solutions based on the actual greenhouse application.

This approach allows B2B customers to coordinate the bench system with the overall project requirements.

Customized Ebb and Flow Bench Solutions

Different projects require different specifications.

Customized solutions can be designed according to:

• Greenhouse dimensions

• Crop type

• Bench layout

• Required load capacity

• Irrigation requirements

• Automation requirements

For greenhouse contractors and project developers, customized manufacturing can help ensure that the bench system fits the overall greenhouse design.

Advanced Manufacturing and Quality Control

Reliable greenhouse equipment depends heavily on manufacturing quality.

Our manufacturing capabilities include processes such as:

• CNC bending

• Laser cutting

• Automated welding

• Robotic welding

• Hot-dip galvanizing

• Quality control inspection

These processes help improve dimensional consistency, structural strength, and long-term durability.

How to Choose the Right Ebb and Flow Bench for Your Greenhouse Project?

Choosing an ebb and flow bench should start with production requirements rather than price alone.

Consider Your Crop and Production Goals

Different crops have different requirements.

For example, a nursery producing vegetable seedlings may prioritize:

• High production density

• Efficient irrigation

• Easy cleaning

• Fast crop turnover

A flower grower may place greater emphasis on:

• Precise irrigation

• Bench mobility

• Labor efficiency

• Crop presentation

Understanding the crop and production cycle is the first step in selecting the correct system.

Match the Bench System to Your Greenhouse Layout

The bench design should be compatible with the greenhouse structure.

Important factors include:

• Span width

• Column positions

• Working aisles

• Irrigation zones

• Equipment access

A well-designed layout can maximize the effective growing area while maintaining sufficient working space.

For large projects, the greenhouse structure and bench system should ideally be planned together.

Plan for Future Automation and Expansion

If you plan to expand the greenhouse in the future, it is important to consider the scalability of the bench and irrigation system.

A system designed for future expansion may allow you to add:

• Additional benches

• More irrigation zones

• Automated fertigation

• Advanced control systems

Planning ahead can help avoid expensive modifications later.

Compare Initial Cost with Long-Term ROI

The best system is not necessarily the cheapest system.

Instead, consider the total value generated throughout the equipment's service life.

Important factors include:

• Initial investment

• Expected service life

• Maintenance costs

• Labor savings

• Water savings

• Production efficiency

• Automation potential

For commercial growers, a slightly higher-quality system may provide a better long-term return on investment.

Frequently Asked Questions About Greenhouse Ebb and Flow Bench Cost

How much does an ebb and flow bench cost per square meter?

As a general reference, basic ebb and flow benches may cost approximately USD $45–138 per square meter.

The actual quotation depends on the bench design, material, quantity, automation level, irrigation system, and project requirements.

What is the lifespan of an ebb and flow bench?

The service life depends on the frame material, flood tray quality, greenhouse environment, maintenance, and frequency of use.

A properly manufactured commercial bench using corrosion-resistant materials and receiving regular maintenance can provide many years of service.

Buyers should ask the manufacturer about material specifications, surface treatment, and expected service life before purchasing.

Are ebb and flow benches suitable for vegetable production?

Yes. Ebb and flow benches are widely used for vegetable seedling production and plant propagation.

They are particularly useful when growers need uniform irrigation and efficient water management.

For mature fruiting vegetables such as tomatoes and cucumbers, other growing systems may be more appropriate depending on the production method.

Can I order customized greenhouse benches from China?

Yes. Chinese greenhouse equipment manufacturers can provide customized bench solutions for international projects.

Customers can customize:

• Dimensions

• Materials

• Load capacity

• Flood tray design

• Rolling systems

• Irrigation connections

• Automation level

For a customized quotation, it is recommended to provide the greenhouse dimensions, project location, crop type, required bench area, and expected production method.

What information is needed for an ebb and flow bench quotation?

A manufacturer will normally need:

• Greenhouse size

• Total growing area

• Bench dimensions

• Crop type

• Number of benches

• Fixed or mobile bench requirements

• Irrigation requirements

• Automation level

• Project location

The more detailed the project information, the more accurate the quotation will be.

How long does manufacturing and delivery take?

Production time depends on:

• Project size

• Product specifications

• Customization requirements

• Order quantity

• Factory production schedule

For large commercial projects, it is recommended to contact the manufacturer early so that engineering design, production, packaging, and international shipping can be planned together.

Conclusion: Get the Right Ebb and Flow Bench Solution for Your Greenhouse

The cost of a greenhouse ebb and flow bench in 2026 can vary significantly depending on the system design, materials, automation level, and project requirements.

Commercial growers, greenhouse contractors, and project developers should also evaluate:

• Structural quality

• Flood tray durability

• Irrigation performance

• Water recycling efficiency

• Automation capabilities

• Manufacturing experience

• Customization options

• Export experience

• Technical support

For large commercial greenhouse projects, working directly with an experienced manufacturer can help buyers obtain a customized solution that matches their greenhouse layout, crop requirements, and production goals.

Top Greenhouse provides customized greenhouse equipment solutions for commercial growers, greenhouse contractors, distributors, and agricultural projects. Our manufacturing capabilities and project-oriented approach allow us to provide solutions based on specific greenhouse dimensions and production requirements.

If you are planning a commercial greenhouse, nursery, or plant propagation project and need a customized ebb and flow bench system, contact Top Greenhouse with your greenhouse dimensions, project area, crop type, and required automation level.

Our technical team can help you evaluate the appropriate bench configuration and prepare a customized solution based on your project requirements.

Request a customized greenhouse ebb and flow bench quotation today and discover a cost-effective solution for your commercial growing project.
