How To Design A Rolling Bench System for A Commercial Greenhouse

Designing a rolling bench system for a commercial greenhouse is not simply a matter of choosing a bench size and filling the greenhouse with as many benches as possible.

A properly designed rolling bench system must balance growing area, worker access, plant handling, load capacity, irrigation, drainage, automation, installation, and long-term maintenance.

For commercial growers, greenhouse contractors, EPC companies, and project owners, the goal is to create a system that makes the best use of the available greenhouse space while maintaining efficient daily operations.

A well-designed rolling bench layout can help increase usable growing space compared with traditional fixed benches. However, the actual result depends heavily on the greenhouse dimensions, crop type, bench configuration, and operational workflow.

This guide explains how to design a commercial greenhouse rolling bench system step by step, from the initial greenhouse layout to bench dimensions, material selection, movement, irrigation, automation, and project procurement.

How Do You Design a Commercial Greenhouse Rolling Bench System?

To design a rolling bench system for a commercial greenhouse, start with the greenhouse structure and production requirements, rather than selecting a bench first.

The basic design process is:

The most important principle is simple:

Design the greenhouse workflow first, then optimize the rolling bench layout around it.

The 7 Key Factors in Rolling Bench Design

A commercial rolling bench system should be designed around seven major factors:

• Greenhouse dimensions

• Bench dimensions

• Crop requirements

• Space utilization

• Worker access

• Load capacity

• Irrigation and automation

The ideal design is not necessarily the one with the highest number of benches.

Instead, it is the design that provides the best combination of production density and operational efficiency.

Why Greenhouse Layout Should Be Designed Before Ordering Benches

One of the most common mistakes in commercial greenhouse projects is ordering greenhouse rolling benches based only on a standard product size.

The greenhouse structure may contain:

• Internal columns

• Heating pipes

• Irrigation lines

• Ventilation equipment

• Electrical systems

• Doors

• Service corridors

These factors can affect the actual bench layout.

For this reason, the rolling bench system should ideally be designed after reviewing the greenhouse floor plan.

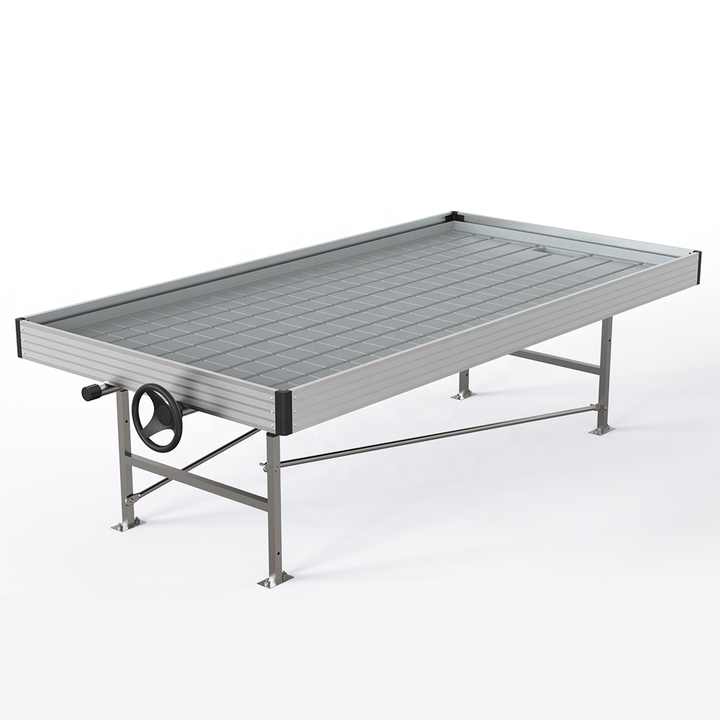

What Is a Rolling Bench System?

A rolling bench system is a movable greenhouse cultivation system designed to improve the use of internal growing space.

Unlike fixed benches, rolling benches can move horizontally.

This allows growers to reduce the amount of permanent space dedicated to walkways. When workers need access to a specific bench, the benches can be moved to create a working aisle.

Rolling benches are commonly used for:

• Seedling production

• Plant propagation

• Ornamental plants

• Potted plants

• Flower production

• Nursery operations

• Research greenhouses

• Commercial horticulture

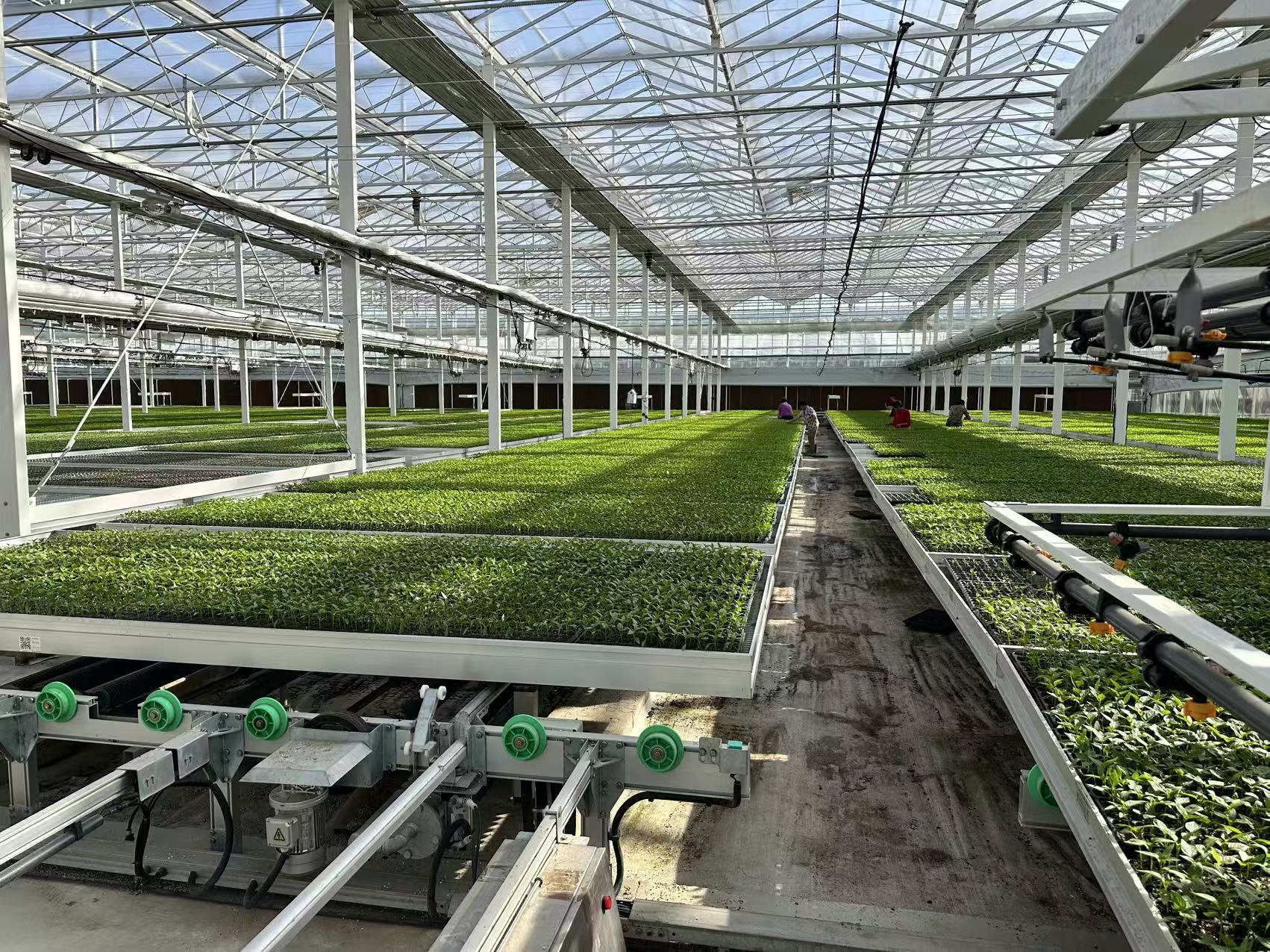

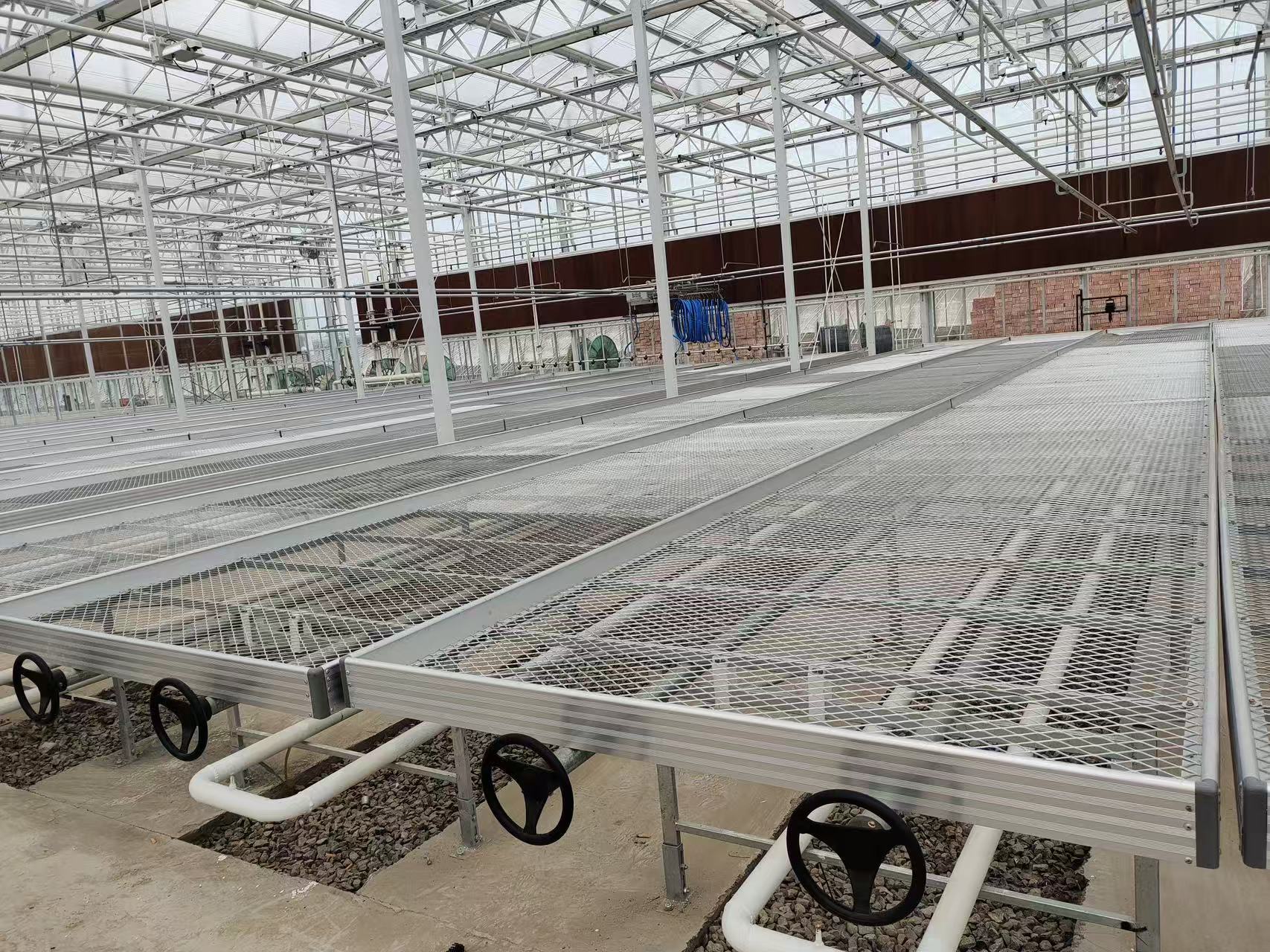

How Commercial Rolling Benches Work

A typical rolling bench is supported by wheels or rollers that allow the structure to move along the greenhouse floor or a dedicated track system.

The benches are normally arranged in parallel rows.

During normal production, the benches remain close together to maximize growing space.

When workers need to access a particular bench, the system can be moved to create a working aisle.

This concept allows the greenhouse to use its floor area more efficiently than a traditional fixed-bench arrangement.

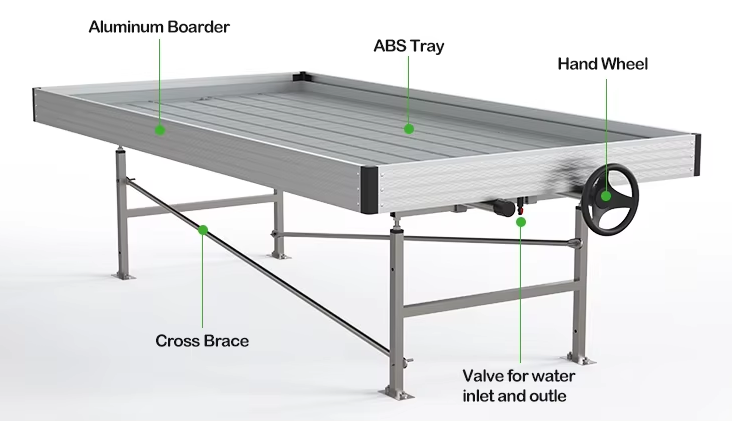

Main Components of a Rolling Bench System

A commercial rolling bench system may include:

• Bench tabletop

• Main frame

• Side supports

• Cross supports

• Rolling wheels

• Rails or guide components

• End stops

• Manual drive mechanism

• Motorized drive system

• Optional irrigation equipment

The exact configuration should be selected according to the greenhouse application.

For example, a propagation greenhouse may require a lightweight bench with excellent drainage, while a commercial nursery may need a stronger structure capable of supporting heavy plants and containers.

Step 1: Analyze the Commercial Greenhouse Layout

The first step is to understand the greenhouse itself.

Before designing the rolling bench layout, collect accurate information about the building.

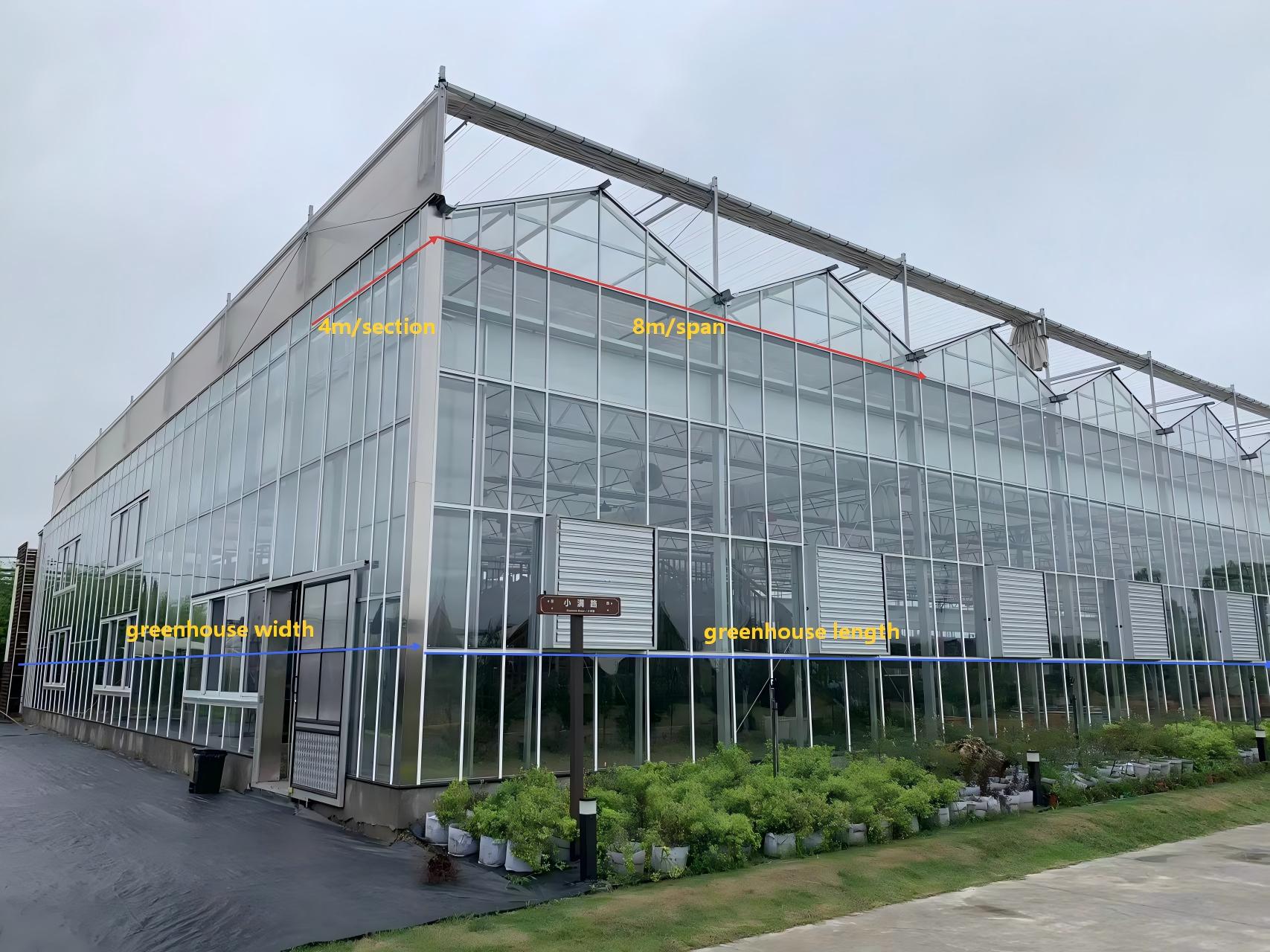

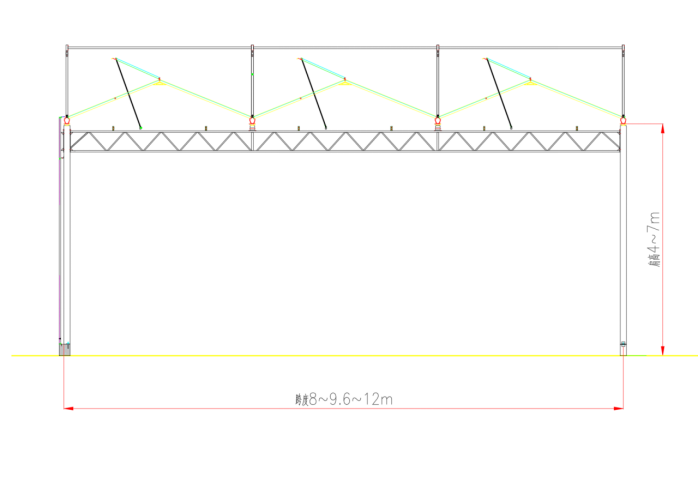

Greenhouse Dimensions

At minimum, you should know:

• Total greenhouse length

• Total greenhouse width

• Internal usable area

• Eave or gutter height

• Internal column positions

• Door locations

The overall greenhouse dimensions determine how many bench rows can be installed.

However, the internal usable area is more important than the external footprint.

Structural Columns and Internal Obstacles

Columns can affect the positioning and movement of rolling benches.

Other obstacles may include:

• Heating pipes

• Irrigation pipes

• Electrical cabinets

• Drainage channels

• Ventilation equipment

The bench layout should avoid interference with these systems.

Main Aisles and Service Areas

A commercial greenhouse still requires permanent access areas.

Depending on the project, you may need space for:

• Main worker access

• Carts

• Trolleys

• Forklifts

• Plant transportation

• Harvesting

• Maintenance

The rolling bench system should therefore be integrated with the complete internal logistics plan.

Step 2: Determine the Best Rolling Bench Dimensions

Bench dimensions should be selected according to the crop and greenhouse layout.

There is no universal size that is ideal for every commercial greenhouse.

Bench Width

Bench width affects:

• Plant capacity

• Worker reach

• Greenhouse space utilization

• Movement requirements

A wider bench can increase growing capacity, but it may also make it harder for workers to reach plants in the center.

For manual plant handling, ergonomic access should be considered.

For automated systems, the bench dimensions may be determined by the equipment and workflow.

Bench Length

Longer benches can reduce the number of individual bench units required.

However, extremely long benches may create challenges related to:

• Movement

• Structural strength

• Installation

• Alignment

• Maintenance

The appropriate length should therefore be based on the greenhouse structure and rolling mechanism.

Bench Height and Working Ergonomics

Bench height is particularly important for labor-intensive crops.

Workers may spend many hours:

• Planting

• Transplanting

• Pruning

• Inspecting

• Watering

• Harvesting

The bench height should therefore be selected to support comfortable working conditions.

For commercial projects, the greenhouse rolling bench manufacturer can often customize the height according to crop type and operational requirements.

Step 3: Calculate Bench Quantity and Space Utilization

Once the dimensions are established, the next step is to determine how many benches are required.

How to Calculate the Number of Rolling Benches

A simplified calculation can be expressed as:

Number of benches = available bench layout width ÷ bench width

However, this is only a preliminary calculation.

The actual design must also account for:

• Permanent aisles

• End access

• Structural columns

• Equipment

• Doors

• Maintenance areas

The final number should be confirmed using a detailed greenhouse layout drawing.

How Rolling Benches Increase Usable Growing Area

The main advantage of rolling benches is that they can reduce unnecessary permanent walkways.

With fixed benches, each bench typically requires its own access aisle.

With rolling benches, multiple benches can be positioned close together, and an aisle can be created where required.

This can increase the effective growing area within the same greenhouse footprint.

However, the actual increase depends on:

• Bench width

• Bench movement

• Crop type

• Required access

• Greenhouse dimensions

For this reason, a professional layout calculation is more reliable than using a fixed percentage for every project.

Step 4: Design the Rolling Bench Layout and Movement

The direction in which benches move is a key design decision.

Bench Movement Direction

Most systems are designed to move benches horizontally from side to side.

The movement direction should be selected according to:

• Greenhouse width

• Bench length

• Main access aisle

• Worker workflow

• Irrigation connection

The goal is to create access efficiently without requiring unnecessary bench movement.

Working Aisles and Access

The design should identify where workers need access.

For example, workers may need to:

• Inspect plants

• Move seedlings

• Transport pots

• Harvest crops

• Perform maintenance

The system should allow access to every production zone.

End Aisles and Emergency Access

End areas should also be considered.

A commercial greenhouse may require sufficient space at the ends of bench rows for:

• Turning carts

• Plant handling

• Equipment access

• Maintenance

Emergency access requirements should also be reviewed according to local regulations and project standards.

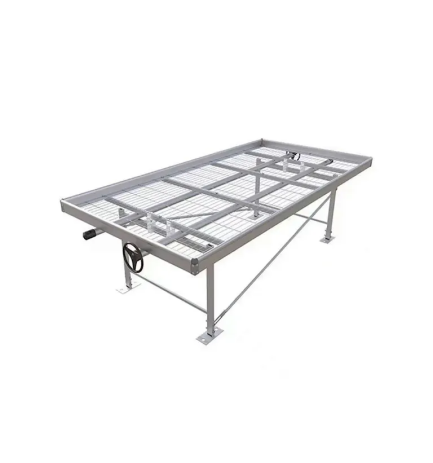

Step 5: Select the Right Rolling Bench Structure

The structure must be strong enough for the intended crop and working conditions.

Aluminum vs Galvanized Steel

Aluminum is lightweight and naturally corrosion resistant.

It can be suitable for greenhouse environments with high humidity.

Galvanized steel offers high structural strength and can be an economical choice for heavy-duty applications.

For commercial projects, the choice should consider:

• Load requirements

• Greenhouse humidity

• Expected service life

• Budget

• Local environmental conditions

Load Capacity Requirements

Load capacity should be calculated based on the complete operating load.

This may include:

• Plants

• Pots

• Trays

• Growing media

• Water

• Workers

• Equipment

For example, a nursery producing large container plants may require significantly greater load capacity than a seedling propagation facility.

Corrosion Protection for Humid Greenhouses

Greenhouse environments are often exposed to:

• High humidity

• Irrigation water

• Fertilizer solutions

• Condensation

Therefore, corrosion protection is an important part of rolling bench design.

Appropriate surface treatment can help extend the service life of the structure.

The manufacturer should clearly specify the material and surface treatment used in the system.

Step 6: Choose Manual or Motorized Rolling Benches

The operation method should match the project scale.

When to Choose Manual Rolling Benches

Manual systems are suitable when:

• The greenhouse is small or medium-sized

• Bench movement is relatively infrequent

• Labor is readily available

• The project has a limited automation budget

Manual rolling benches generally have a lower initial investment.

They can also be simpler to install and maintain.

When to Choose Motorized Rolling Benches

Motorized systems may be more suitable for:

• Large commercial greenhouses

• High-density production

• Large nursery operations

• Facilities with high labor costs

• Projects requiring automation

The additional investment may be justified when the system is operated frequently.

Integrating Rolling Benches With Greenhouse Automation

For advanced greenhouse projects, rolling benches can potentially be integrated with broader automation systems.

Depending on the project, automation may include:

• Motor control

• Centralized operation

• Irrigation control

• Environmental monitoring

• Production management

The exact level of integration depends on the project budget and technical requirements.

Step 7: Integrate Irrigation With the Rolling Bench System

Irrigation should be considered during the bench design stage.

Retrofitting irrigation after installation may be more complicated.

Standard Irrigation Options

Depending on the crop, a rolling bench system may use:

• Drip irrigation

• Micro-irrigation

• Overhead irrigation

• Manual watering

• Ebb and flow irrigation

The irrigation method should match the crop and production model.

Ebb and Flow Rolling Benches

Ebb and flow benches are particularly useful for certain potted plants, seedlings, and nursery production systems.

The bench acts as a shallow growing and irrigation platform.

Water or nutrient solution is introduced into the bench and then drained after irrigation.

This can help improve:

• Water distribution

• Fertilizer efficiency

• Irrigation consistency

Water Collection and Drainage Design

An ebb and flow system requires careful planning of:

• Water inlet

• Drainage outlet

• Collection tank

• Pump

• Filtration

• Recirculation

The greenhouse floor drainage system should also be considered.

A complete system design should ensure that excess water does not interfere with worker movement or greenhouse equipment.

Step 8: Design the System for Different Crops

The crop has a major influence on rolling bench design.

Seedling Production

Seedling operations often prioritize:

• High density

• Easy plant handling

• Good drainage

• Efficient irrigation

Rolling benches can be particularly effective for nurseries where many trays need to be managed efficiently.

Ornamental Plants and Flowers

For ornamental plants, consider:

• Pot size

• Plant height

• Plant spacing

• Weight

• Worker access

The bench load capacity may need to be higher for mature potted plants.

Commercial Nursery Production

Commercial nurseries often require efficient plant movement.

The design should consider:

• Pot transportation

• Cart access

• Plant grouping

• Irrigation

• Harvesting

The rolling bench system should fit into the broader nursery logistics system.

High-Density Growing Applications

High-density production requires careful optimization.

The goal is to maximize production area without making daily operations inefficient.

A professional design should balance:

Production density + accessibility + labor efficiency

rather than maximizing bench coverage alone.

Step 9: Consider Worker Workflow and Operational Efficiency

A rolling bench system is ultimately designed to support people and production.

Plant Handling and Transportation

Consider how plants enter and leave the greenhouse.

Ask:

• How are seedlings delivered?

• How are pots transported?

• Are carts required?

• Where are plants sorted?

• Where are finished plants stored?

The answers can affect the main aisle and bench layout.

Harvesting and Maintenance

For crops requiring frequent maintenance, workers need easy access.

The layout should allow workers to reach plants without excessive movement.

Maintenance personnel should also be able to access:

• Irrigation equipment

• Motors

• Rolling mechanisms

• Drainage

• Electrical components

Designing for Long-Term Labor Efficiency

A rolling bench system should be evaluated over its expected service life.

Even a relatively small improvement in daily workflow can have a significant impact on long-term operating costs in a large commercial greenhouse.

For this reason, labor efficiency should be considered alongside the initial equipment price.

Step 10: Plan Installation, Maintenance and Future Expansion

A good design should consider the entire lifecycle of the system.

Installation Requirements

Before installation, confirm:

• Greenhouse floor condition

• Levelness

• Access for installation

• Electrical requirements

• Irrigation connections

• Drainage

The manufacturer should provide installation drawings where required.

Maintenance Access

Moving components require periodic inspection.

The design should provide access to:

• Wheels

• Rails

• Motors

• Gear systems

• Electrical components

Maintenance access should not require dismantling large parts of the greenhouse.

Modular Design for Future Expansion

For commercial growers, future expansion may be an important consideration.

A modular rolling bench system may make it easier to:

• Add additional benches

• Replace components

• Upgrade automation

• Expand irrigation

Planning for future expansion can reduce future modification costs.

How to Calculate the Cost of a Rolling Bench System

The cost should be calculated based on the complete system.

Main Cost Components

The total project cost may include:

• Rolling bench structure

• Tabletop

• Wheels

• Rolling mechanism

• Manual drive system

• Motorized drive system

• Irrigation

• Ebb and flow equipment

• Water collection

• Control system

• Packaging

• Shipping

• Installation

What Should Be Included in a B2B Quotation?

A professional quotation should clearly state:

• Product specifications

• Bench dimensions

• Quantity

• Material

• Load capacity

• Accessories

• Packaging

• Delivery terms

• Installation scope

• Warranty

This makes it easier for buyers to compare different suppliers.

Common Rolling Bench Design Mistakes to Avoid

Even experienced greenhouse project teams can make design mistakes.

Choosing Bench Dimensions Without a Greenhouse Layout

Standard dimensions may not fit every greenhouse.

Always check the actual internal dimensions and structural layout.

Ignoring Load Requirements

The bench should be designed for the actual production load.

Underestimating the load can create structural and operational problems.

Focusing Only on Initial Price

The cheapest system may not provide the best long-term value.

Consider:

• Durability

• Maintenance

• Labor

• Replacement parts

• Energy

• Service life

Failing to Plan for Irrigation and Maintenance

Irrigation and maintenance requirements should be included during the design stage.

Trying to add these systems later can increase installation complexity and cost.

How to Work With a Rolling Bench Manufacturer

Working with the manufacturer early in the project can improve the final result.

Information Required for a Technical Proposal

Provide:

• Greenhouse dimensions

• Floor plan

• Column layout

• Crop type

• Bench requirements

• Expected load

• Irrigation requirements

• Automation requirements

• Project location

A CAD drawing or PDF floor plan is particularly useful.

What a Professional Manufacturer Should Provide

A qualified rolling bench manufacturer should ideally provide:

• Technical specifications

• Product drawings

• Layout recommendations

• Material specifications

• Load information

• Quotation

• Packing information

• Installation instructions

For large commercial projects, the supplier should be able to communicate with the contractor or engineering team throughout the procurement process.

Final Checklist for Commercial Greenhouse Rolling Bench Design

Before placing an order, check the following:

Greenhouse

• Internal dimensions confirmed

• Structural columns identified

• Doors and access points identified

Rolling Benches

• Bench dimensions confirmed

• Bench quantity calculated

• Load capacity confirmed

• Material selected

• Surface treatment confirmed

Operation

• Manual or motorized operation selected

• Movement direction confirmed

• Main aisles designed

• Worker access considered

Irrigation

• Irrigation method selected

• Drainage planned

• Ebb and flow requirements confirmed if applicable

Project

• Installation requirements confirmed

• Packaging confirmed

• Shipping terms confirmed

• Warranty confirmed

• Spare parts and after-sales support confirmed

FAQ About Commercial Greenhouse Rolling Bench Design

What is the best size for a greenhouse rolling bench?

There is no universal best size. The ideal dimensions depend on greenhouse structure, crop type, worker access, load requirements, and production workflow. Commercial projects should select dimensions based on a detailed layout rather than using a standard size automatically.

How much greenhouse space can rolling benches save?

Rolling benches can increase effective growing space by reducing the amount of permanent space required for individual walkways. However, the actual improvement depends on the greenhouse layout, bench dimensions, crop, and required access.

Should I choose manual or motorized rolling benches?

Manual systems are generally suitable for smaller operations and projects with lower movement frequency. Motorized systems may be more appropriate for larger commercial facilities where labor efficiency and automation are priorities.

Can rolling benches be customized?

Yes. Depending on the manufacturer's capabilities, rolling benches can be customized in terms of dimensions, height, materials, load capacity, tabletop design, rolling mechanism, and irrigation integration.

Can rolling benches be integrated with ebb and flow irrigation?

Yes. Ebb and flow rolling benches can combine movable bench systems with flood irrigation. The design should include water supply, drainage, collection, pumping, and filtration.

How do I get a rolling bench system quotation?

Provide the manufacturer with your greenhouse dimensions, floor plan, bench requirements, crop type, expected load, quantity, irrigation requirements, and destination. The manufacturer can then prepare a project-specific layout and quotation.

Conclusion: Design the Rolling Bench System Around Your Greenhouse

A successful commercial greenhouse rolling bench system starts with the greenhouse layout and production workflow—not with a standard product catalogue.

The most important design considerations include:

• Greenhouse dimensions

• Bench size

• Space utilization

• Worker access

• Crop requirements

• Load capacity

• Material selection

• Manual or motorized operation

• Irrigation

• Drainage

• Installation

• Maintenance

• Future expansion

For commercial growers and greenhouse project contractors, the best rolling bench system is the one that provides a practical balance between maximum growing area and efficient daily operations.

If you are planning a new commercial greenhouse or upgrading an existing facility, it is recommended to work with a rolling bench manufacturer at the early design stage. By providing the greenhouse floor plan and production requirements, the manufacturer can help develop a customized bench layout, calculate the required quantity, select the appropriate structure, and prepare a project-specific quotation.

A well-designed rolling bench system is not simply a piece of greenhouse equipment—it is part of the overall production workflow. When the bench layout, greenhouse structure, irrigation, automation, and logistics are designed together, the result can be a more efficient and scalable commercial growing facility.
