A greenhouse screen system, also known as a shading or climate control system, is a vital component in modern greenhouse agriculture. It consists of retractable screens or curtains installed inside or outside a greenhouse to regulate the internal environment, creating optimal conditions for plant growth.
These systems manage key factors such as light, temperature, humidity, and pest intrusion, allowing crops to thrive year-round, regardless of external weather conditions.
Greenhouse screen systems are designed to provide growers with precise control over the growing environment. By using specialized screens, these systems help:
Adjust the amount of sunlight entering the greenhouse to suit specific crop needs.
Maintain warmth in cold weather or reduce heat during hot periods.
Ensure proper airflow to prevent excessive moisture buildup.
Block insects and other intruders without relying heavily on pesticides.
The screens can be deployed manually or automated with sensors that monitor environmental conditions and adjust accordingly, making them a flexible and efficient tool for growers.
Greenhouse screening systems can be categorized based on their primary function, each tailored to specific environmental and crop needs.
Purpose: Reduce the intensity of sunlight entering the greenhouse to prevent overheating and protect plants from excessive light exposure, which can cause leaf burn or fruit discoloration.
Use Case: Commonly used in regions with high solar radiation, such as southern United States or parts of Asia, especially during peak summer months.
Specifications: Available with shading capacities ranging from 30% to 70%, depending on the climate and crop requirements.
Purpose: Retain heat within the greenhouse, particularly during colder seasons, to reduce heating costs and maintain optimal temperatures for plant growth.
Mechanism: Often made with materials like polyester combined with a thin layer of aluminum, reflecting infrared radiation back into the greenhouse to trap warm air.
Benefit: Research from UMass Amherst suggests thermal screens can save 30%–50% on heating costs by providing an additional insulation barrier and trapping a layer of dead air.
Purpose: Prevent the entry of pests such as insects (e.g., aphids, whiteflies) and birds, reducing the need for chemical pesticides and supporting integrated pest management.
Design: Fine mesh screens that allow air circulation while blocking pests, with mesh sizes typically ranging from 20 to 50 mesh for different pest types.
Application: Essential for organic farming and regions with high insect pressure, such as parts of Africa or Southeast Asia, as noted by Green-Tek.

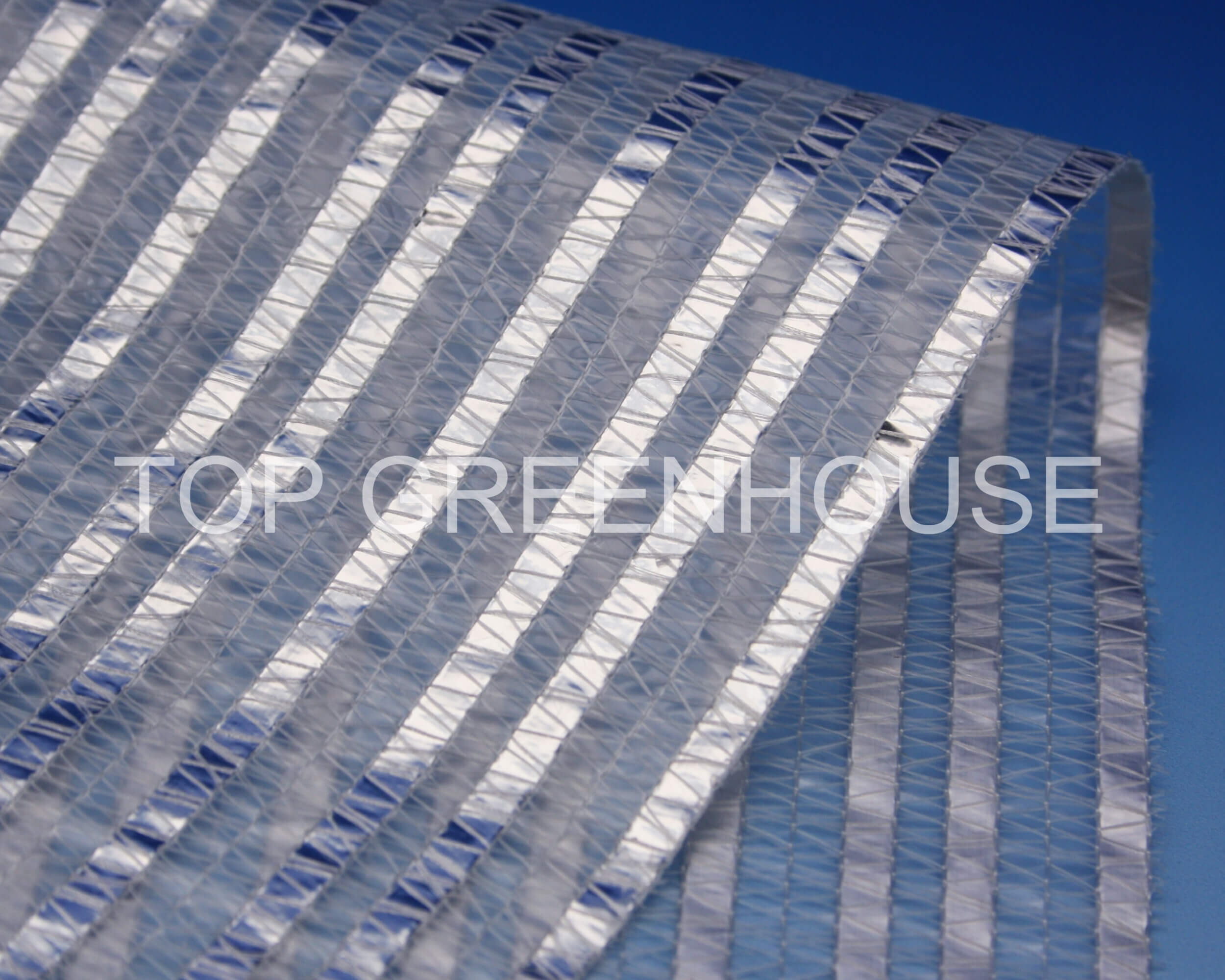

High Transparent Screen

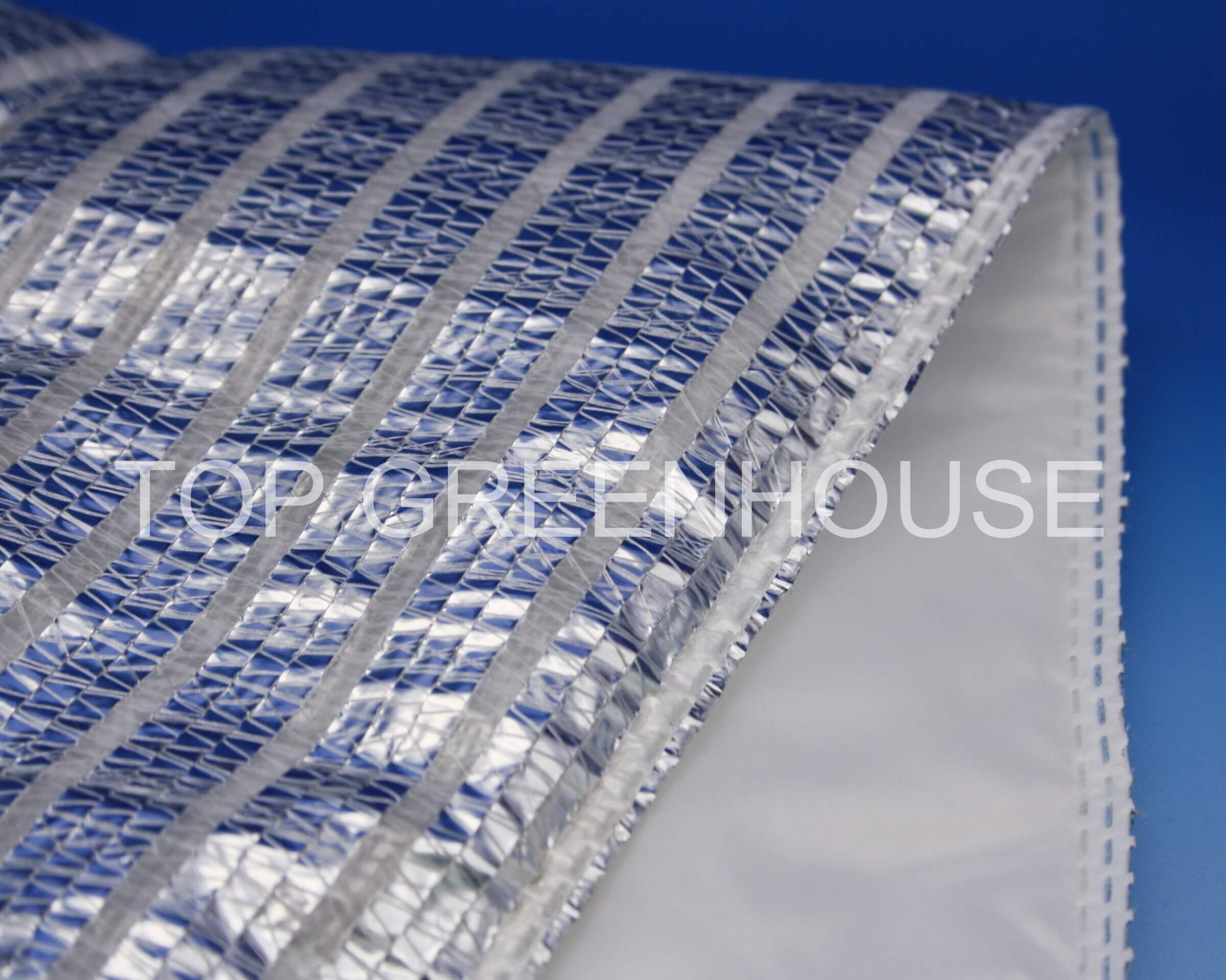

Aluminum Screen

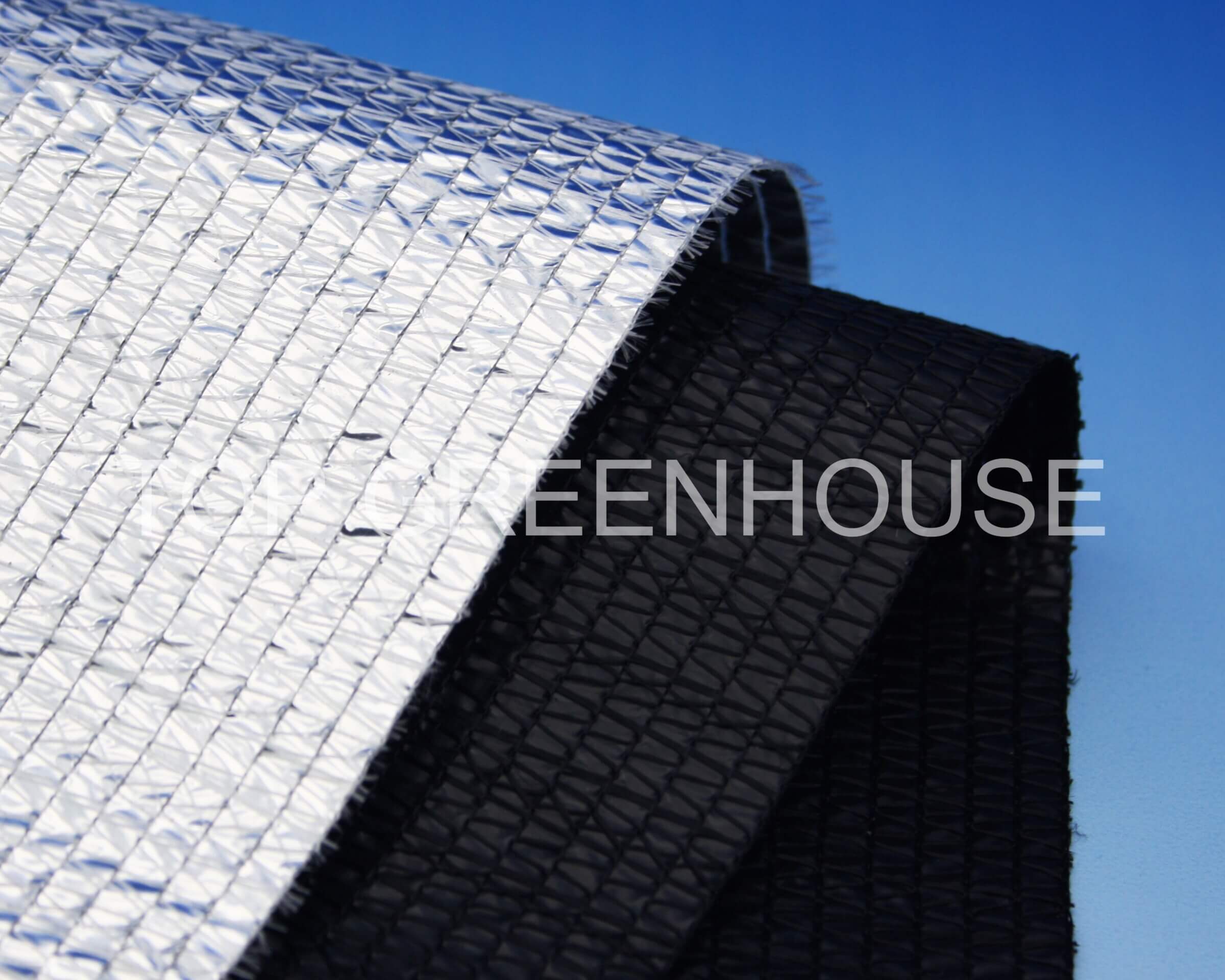

Blackout Screen
Insect Screen
Thermal Screen
Thermal Screen

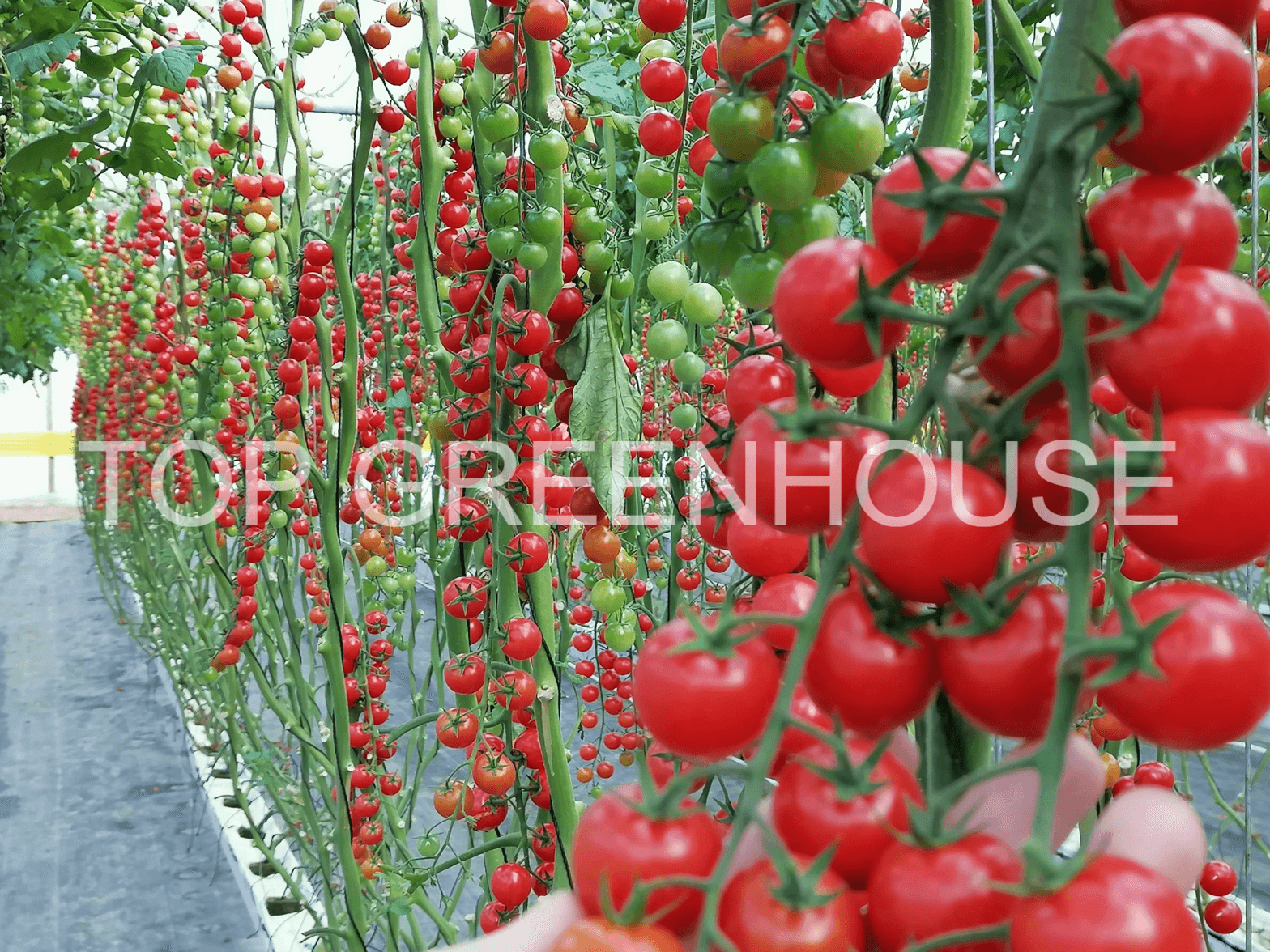

To grow tomatoes successfully in a greenhouse, you need to create specific conditions to ensure healthy plant growth, high yields, and excellent fruit quality. Here are the detailed requirements:
Daytime Temperature: Maintain between 20–25°C, the ideal range for tomato growth.
Nighttime Temperature: Keep between 15–18°C to support fruit development and reduce respiration.
Day-Night Temperature Difference: Control between 5–10°C to enhance fruit coloring and sugar accumulation.
Light Intensity: Tomatoes thrive in light, so provide at least 12 hours of light per day in the greenhouse.
Light Quality: Use high-transparency covering materials (e.g., plastic film or glass) or artificial lighting to ensure even light distribution.
Relative Humidity: Maintain 60%–70% during the growth period, reducing to 50%–60% during flowering to aid pollination.
Ventilation: Install a good ventilation system to prevent high humidity, which can lead to diseases.
Suitable Level: Keep at 800–1000 ppm to boost photosynthesis efficiency.
Adjustment Method: Use ventilation or artificial CO₂ supplementation to maintain the desired concentration.
Soil Type: Select loose, fertile, well-drained sandy loam or loam.
pH Value: Control soil pH between 6.0–6.8.
Nutrition: Ensure the soil is rich in organic matter and balanced in nutrients like nitrogen, phosphorus, and potassium.
Irrigation Method: Use drip or spray irrigation systems to keep soil moist but not overly wet.
Water Control: Avoid waterlogging to prevent root oxygen deficiency or disease.
Base Fertilizer: Apply sufficient organic and compound fertilizers before planting.
Top Dressing: Add nitrogen, phosphorus, potassium, and other fertilizers as needed during flowering and fruit expansion.
Prevention: Keep the greenhouse clean, disinfect regularly, and choose disease-resistant varieties.
Biological Control: Use natural enemies or biological pesticides to manage pests.
Physical Control: Employ insect nets or yellow sticky traps.
By carefully managing these conditions, you can create an optimal environment for growing tomatoes in a greenhouse, resulting in high yields and excellent fruit quality.

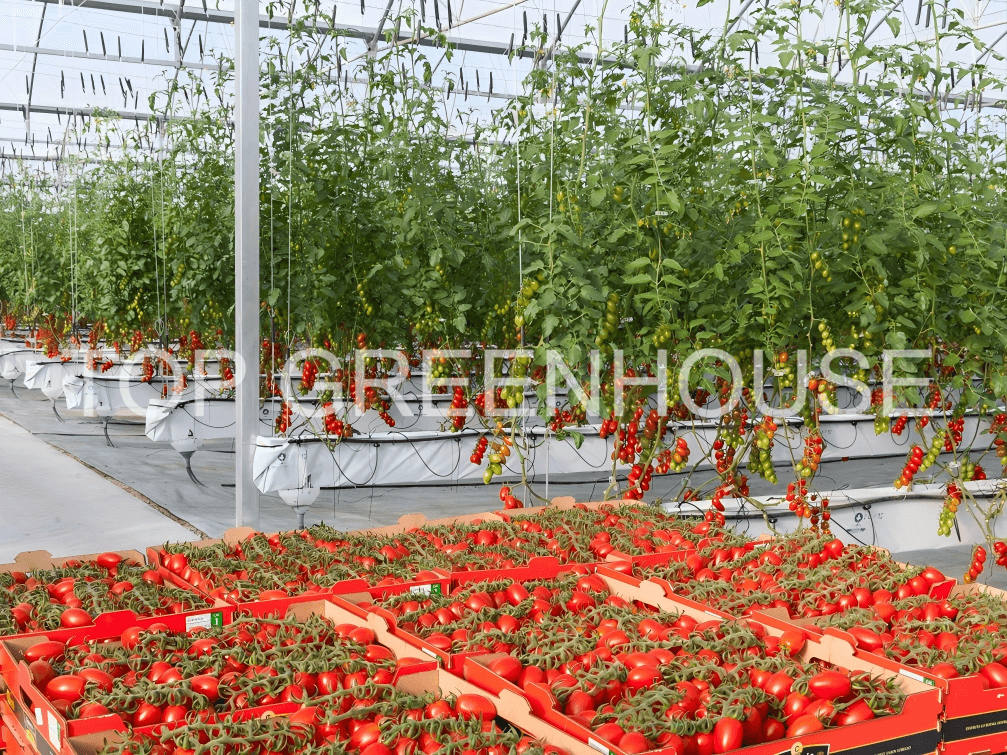

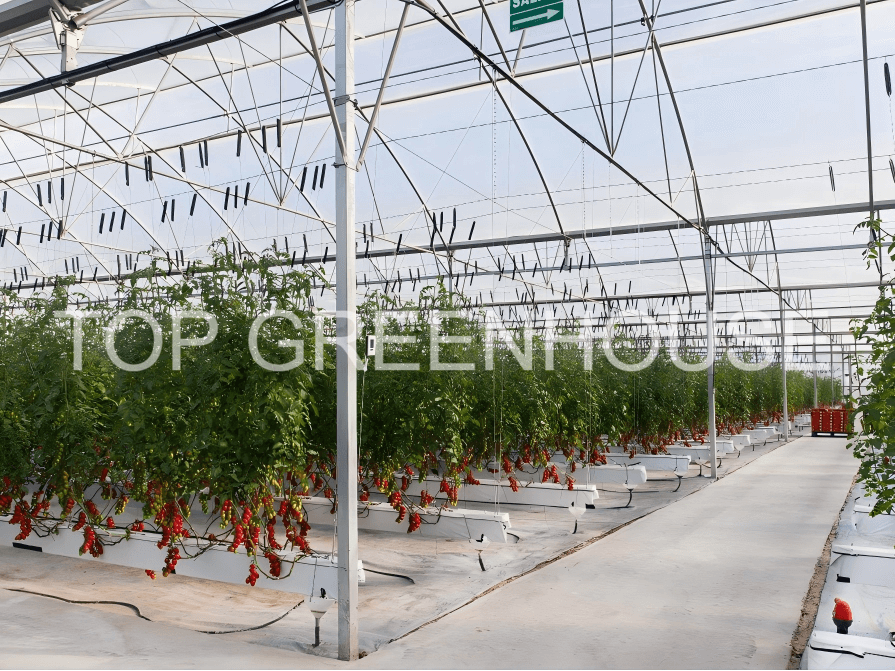

Screens play a crucial role in tomato greenhouses by creating an optimal environment for healthy plant growth and efficient production. Here's why they are so important:
Tomatoes need plenty of light to thrive, but too much direct sunlight can cause sunburn on leaves and fruits, damaging the plants. Screens, such as shading screens, diffuse sunlight, spreading it evenly across the greenhouse. This protects the tomatoes from harm while ensuring they still get enough light for photosynthesis.
Greenhouses can become very hot, especially in sunny weather, which can stress tomato plants and hinder their growth. Screens help block excess sunlight, keeping the temperature inside the greenhouse stable and within the ideal range (typically 20°C to 30°C). This prevents heat stress and supports consistent fruit production.
Insect pests like aphids and whiteflies can damage tomato plants and spread diseases. Screens act as a physical barrier, keeping these pests out of the greenhouse. This reduces the need for chemical pesticides, making the growing process healthier for the plants and more environmentally friendly.
High humidity in greenhouses can lead to fungal diseases, such as blight, which harm tomatoes. Screens improve air circulation when used with proper ventilation, preventing humidity buildup. This keeps the environment drier and less favorable for diseases, protecting the crop.
By reducing the need for artificial cooling in hot conditions or heating in colder ones, screens help save energy. Shading screens lower cooling demands, while thermal screens retain heat when temperatures drop. This cuts down on energy costs and makes greenhouse operations more sustainable.
In summary, screens are essential in tomato greenhouses because they regulate light, control temperature, manage pests, prevent disease, and improve energy efficiency. These benefits work together to ensure healthier tomato plants, better yields, and a more productive and cost-effective growing process.
Choosing the right greenhouse screen system for tomato cultivation is essential for creating an optimal growing environment, as tomatoes have specific requirements for light, temperature, and humidity.
A greenhouse screen system helps regulate these factors, protecting plants from environmental extremes and enhancing growth. Here's a step-by-step guide to selecting the most suitable system for your tomato greenhouse:
Greenhouse screens serve different purposes, so knowing their functions is key to making the right choice:
These reduce sunlight intensity and heat, preventing overheating and leaf burn. They are ideal for hot, sunny climates.
Designed to retain heat, these screens trap warmth during cooler periods, such as at night or in colder seasons.
These block pests while allowing airflow, reducing the need for pesticides and supporting organic farming.
For tomatoes, shading and thermal screens are typically the most relevant, as they directly address light and temperature needs.
Your region's climate will heavily influence your choice:
Prioritize shading screens to reduce light and heat. Look for screens with a higher shading percentage (50-70%) to keep temperatures within the optimal range of 20°C to 30°C during the day.
Opt for thermal screens to retain heat, especially at night. These can help maintain a stable temperature and reduce heating costs.
Consider a combination of both shading and thermal screens, or a dual-purpose screen that can be adjusted based on the season.
Tomatoes have distinct environmental requirements:
Tomatoes need ample light for photosynthesis but can suffer from excessive heat. A shading screen can diffuse light, preventing leaf scorch while ensuring sufficient exposure.
Ideal daytime temperatures are 20°C to 30°C, with slightly cooler nights. Thermal screens help maintain warmth in cooler conditions, while shading screens prevent overheating.
Tomatoes are prone to diseases like blight in high humidity. Ensure your screen system allows for adequate ventilation to manage moisture levels.
Young seedlings may need more protection from intense light, while mature plants benefit from consistent temperatures during fruiting.
Modern screen systems can be manual or automated:
More affordable but require regular adjustment based on weather conditions.
Equipped with sensors that adjust screens based on light, temperature, or humidity. These are ideal for precise control but come at a higher cost.
Consider your budget and the level of control you need. For large-scale or commercial operations, automation may be a worthwhile investment. For smaller setups, manual systems can suffice if you're able to monitor conditions regularly.
Regardless of the screen type, ventilation is crucial for humidity control and disease prevention. Choose a system that integrates well with your greenhouse's ventilation setup, such as roof vents or side openings. Insect screens can also be paired with ventilation systems to keep pests out while maintaining airflow.
By carefully managing these conditions, you can create an optimal environment for growing tomatoes in a greenhouse, resulting in high yields and excellent fruit quality
