A Heated Water Circulation System serves as the central technology behind precise temperature regulation in modern horticultural greenhouses. Its main goal is to provide a stable, evenly distributed environment that supports healthy and consistent plant growth by circulating warm water through an interconnected piping system.
Typically, this system is powered by a central boiler or a buffer tank that stores heated water. The heat is efficiently transferred across all greenhouse zones through a carefully designed network controlled by circulation pumps and an automated control unit. This advanced setup allows growers to achieve highly efficient, energy-saving climate control essential for modern greenhouse production.
The Heated Water Circulation System functions on a closed-loop mechanism, ensuring consistent and efficient heat transfer throughout the greenhouse. Its process can be divided into three main stages:
The system primarily relies on a boiler fueled by natural gas to produce heat.
During combustion, the boiler also generates CO₂, which can be redirected into the greenhouse to promote photosynthesis.
In some setups, heat may also come from external energy sources such as a Combined Heat and Power (CHP) plant or a district heating network.
The generated heat can be stored temporarily in a large buffer tank, ready for use when needed.
When using an external heating source, or when separating the boiler circuit from the greenhouse circuit, the heat is transferred through a dedicated heat exchanger for optimal safety and efficiency.
Circulation Pumps function as the heart of the system, pushing hot water through the extensive pipe network.
A manifold system divides and directs the heated water into different zones of the greenhouse.
A smart control system continuously monitors temperature and adjusts the flow rate and water temperature according to real-time climate data and crop requirements, ensuring every growing area maintains its ideal heat level.
SPX Johnson Pump's Horticulture range is designed around a strong modular concept, offering high component interchangeability. The series consists of two main structural types, comprising four primary product families.

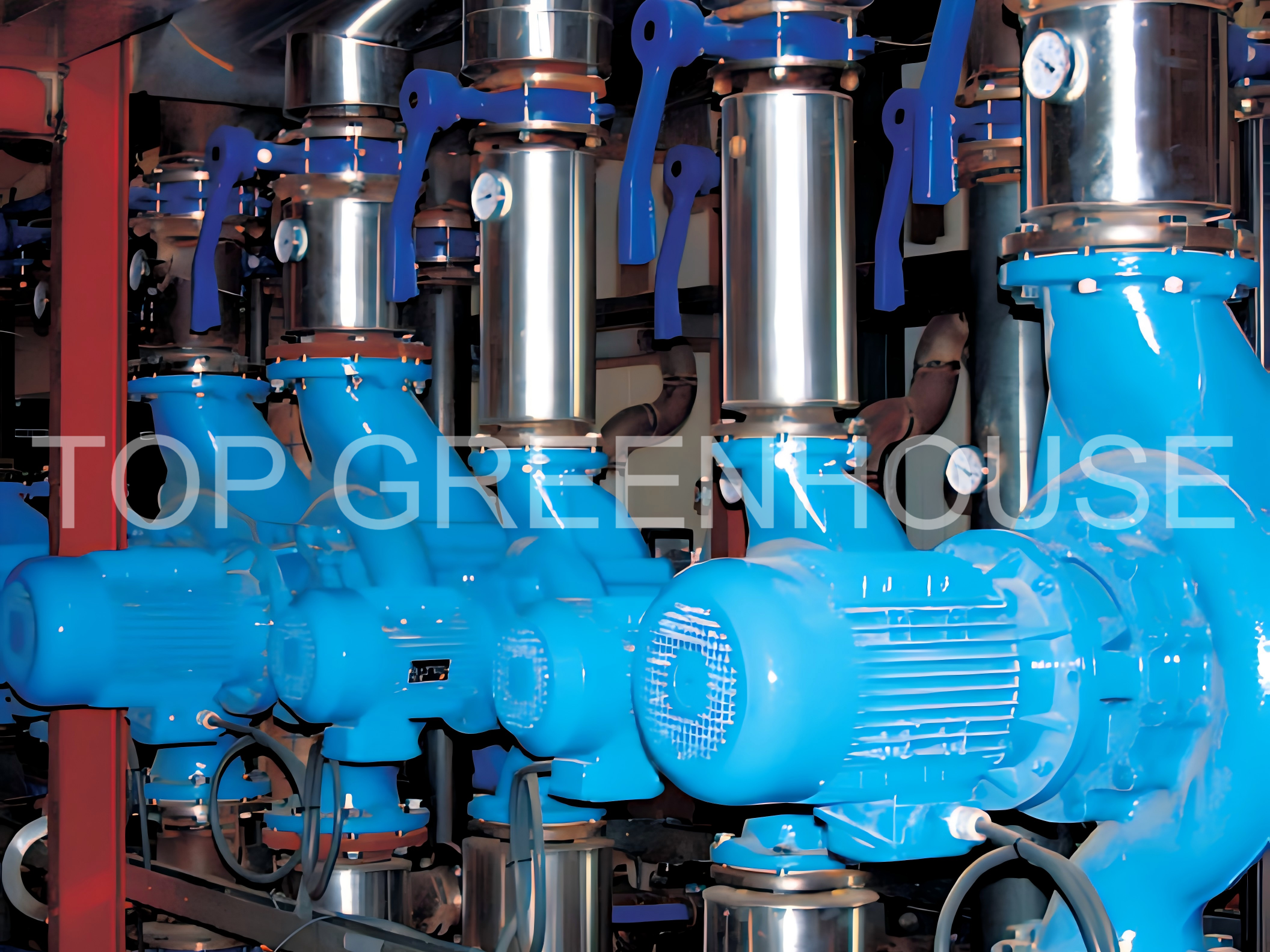

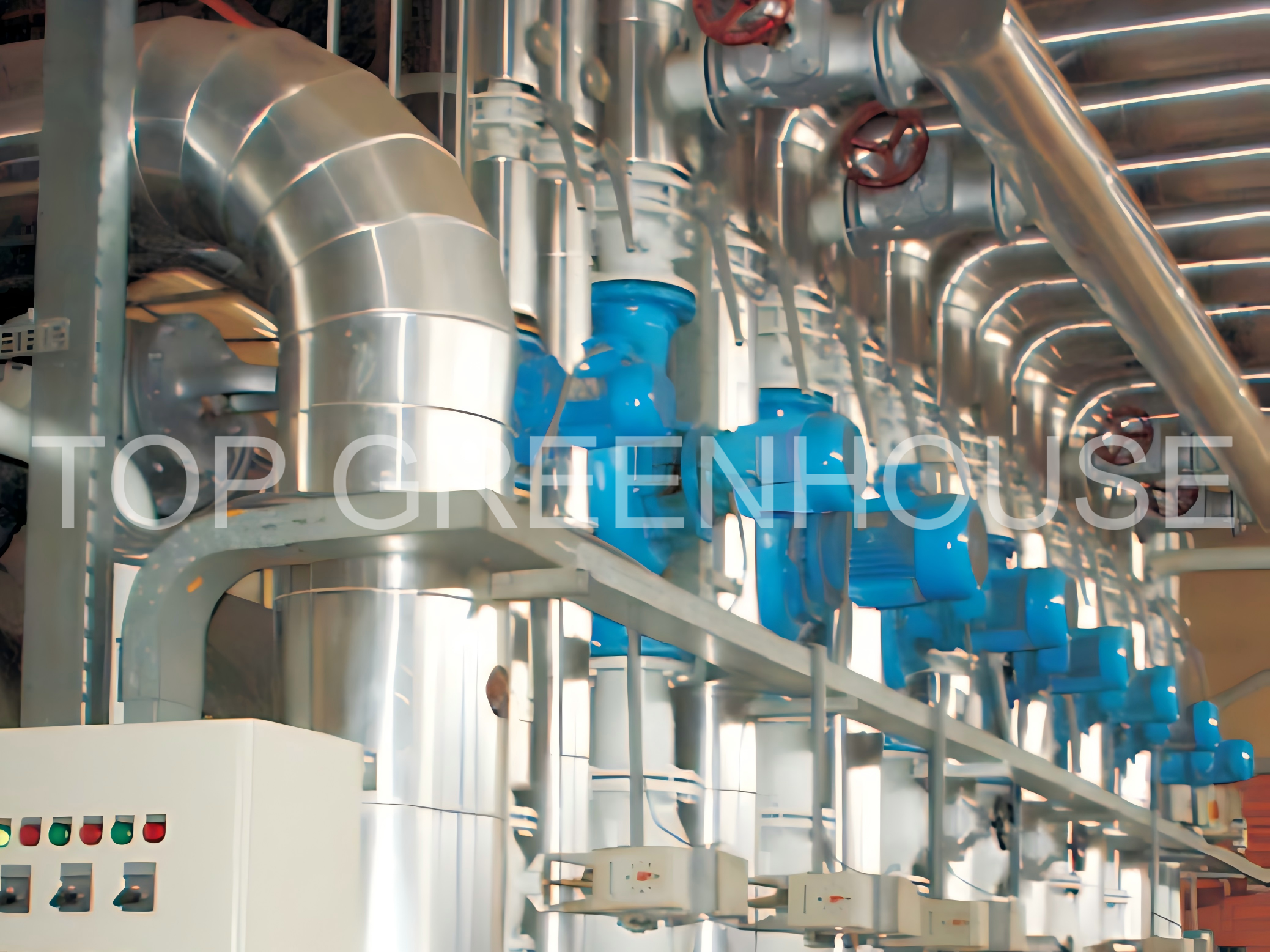

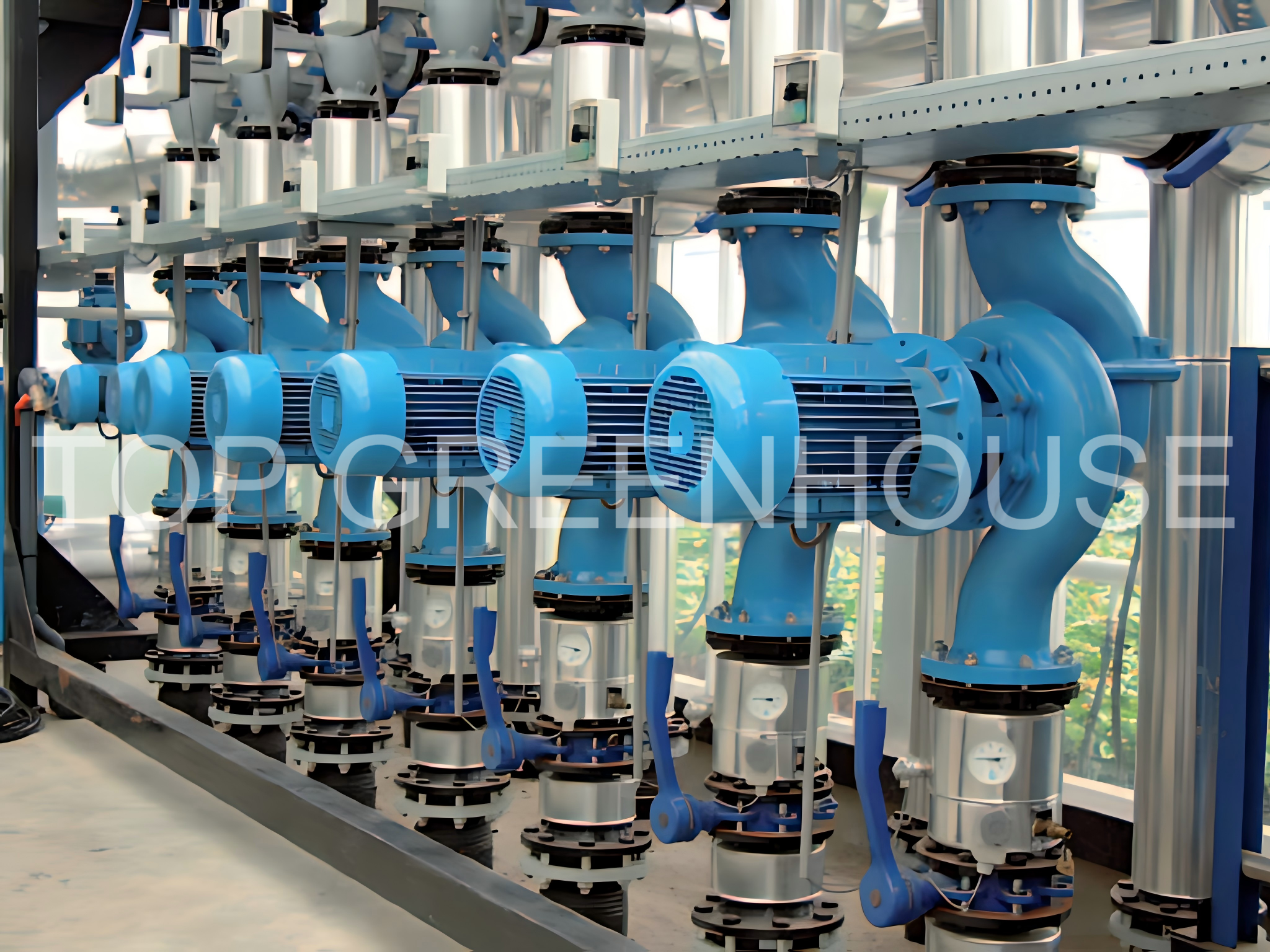

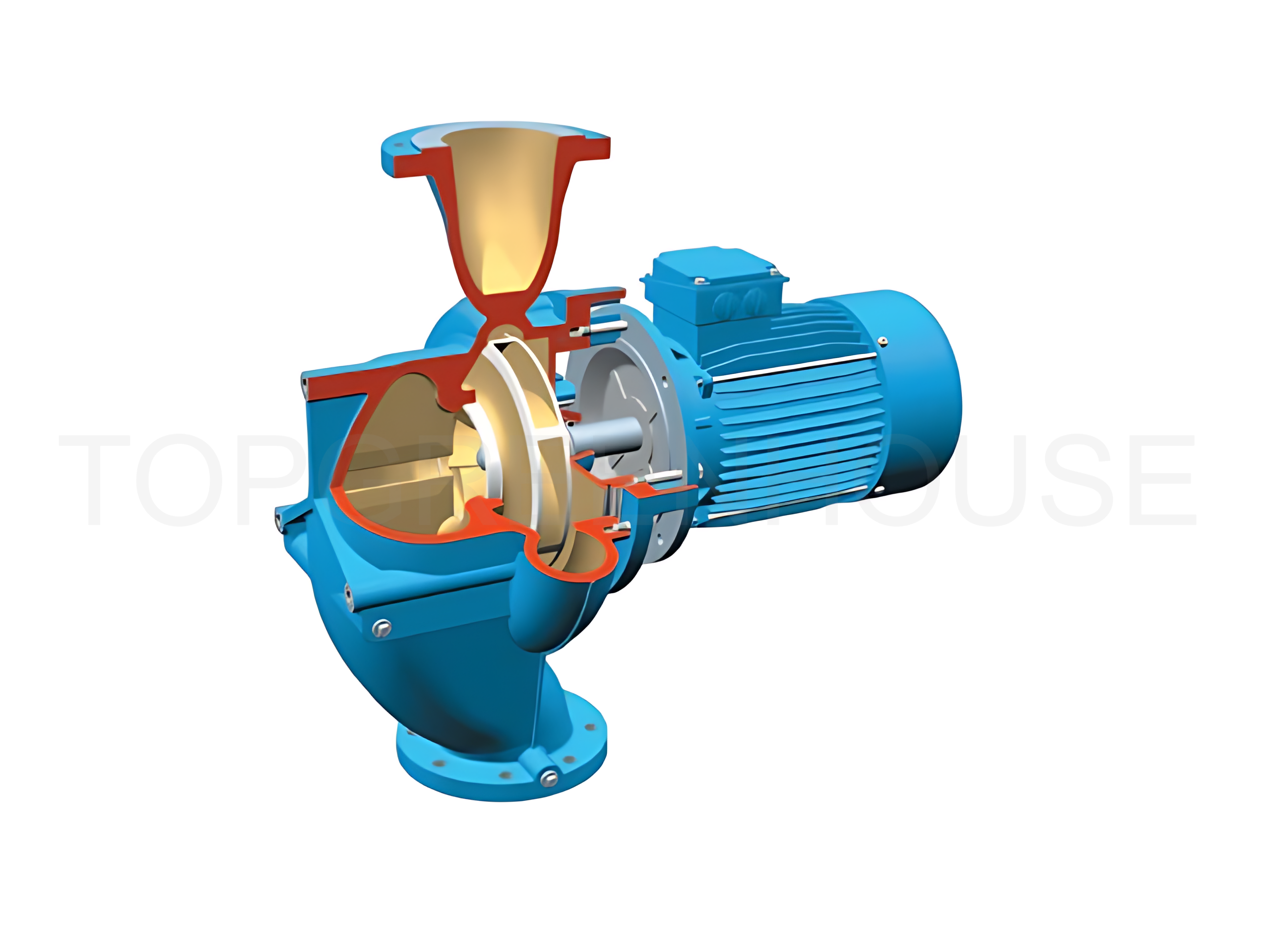

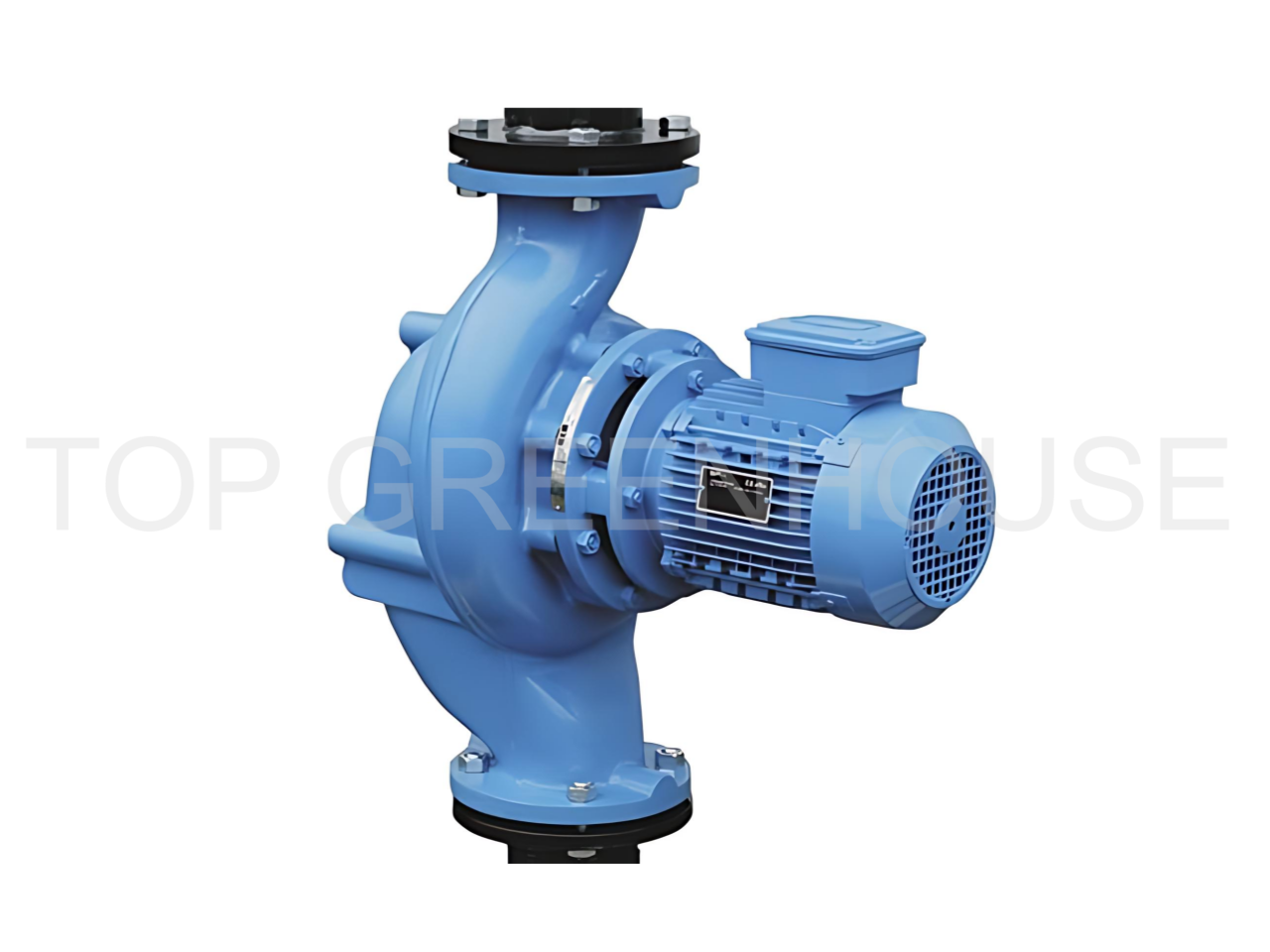

Combiline - CL

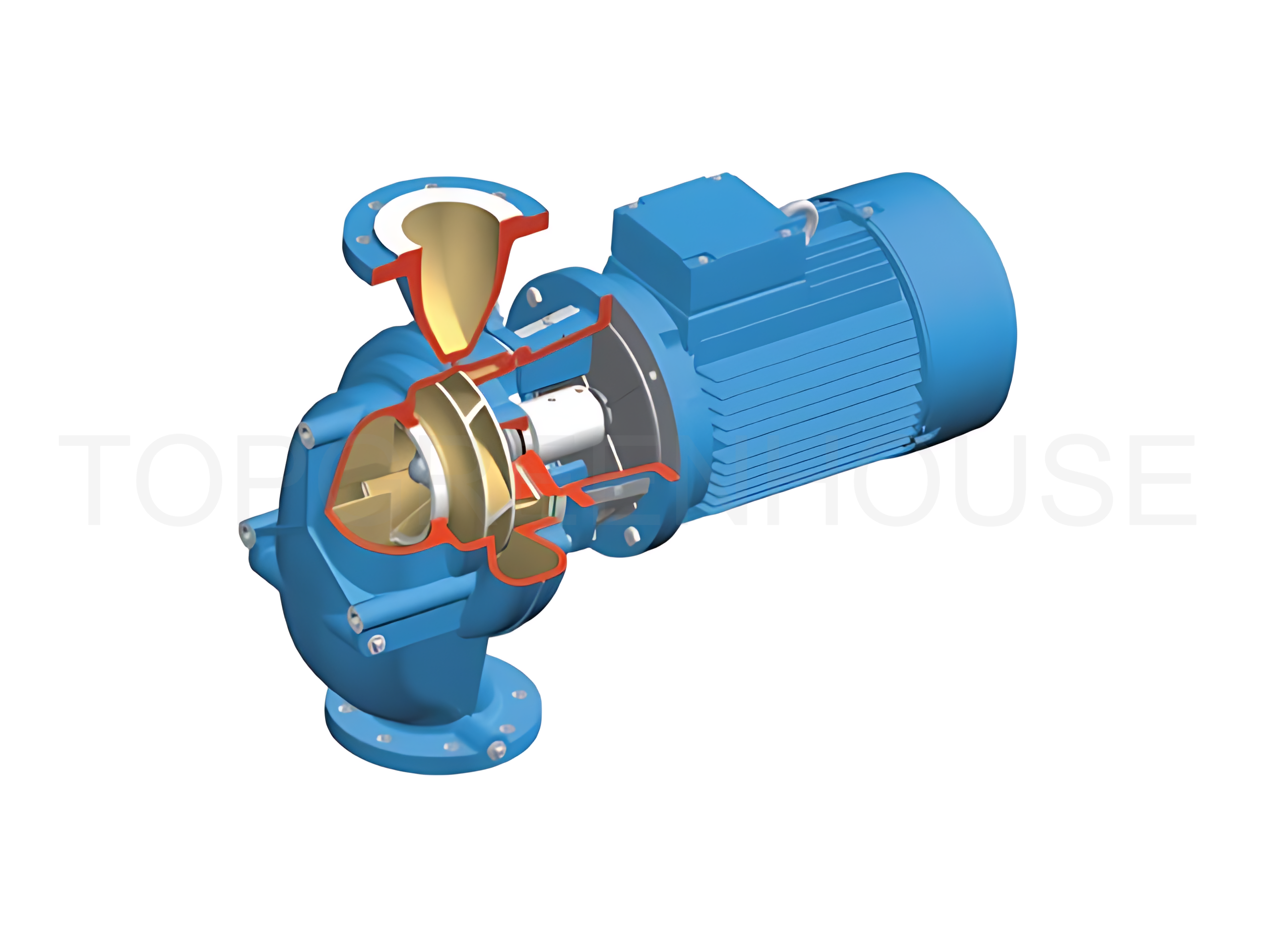

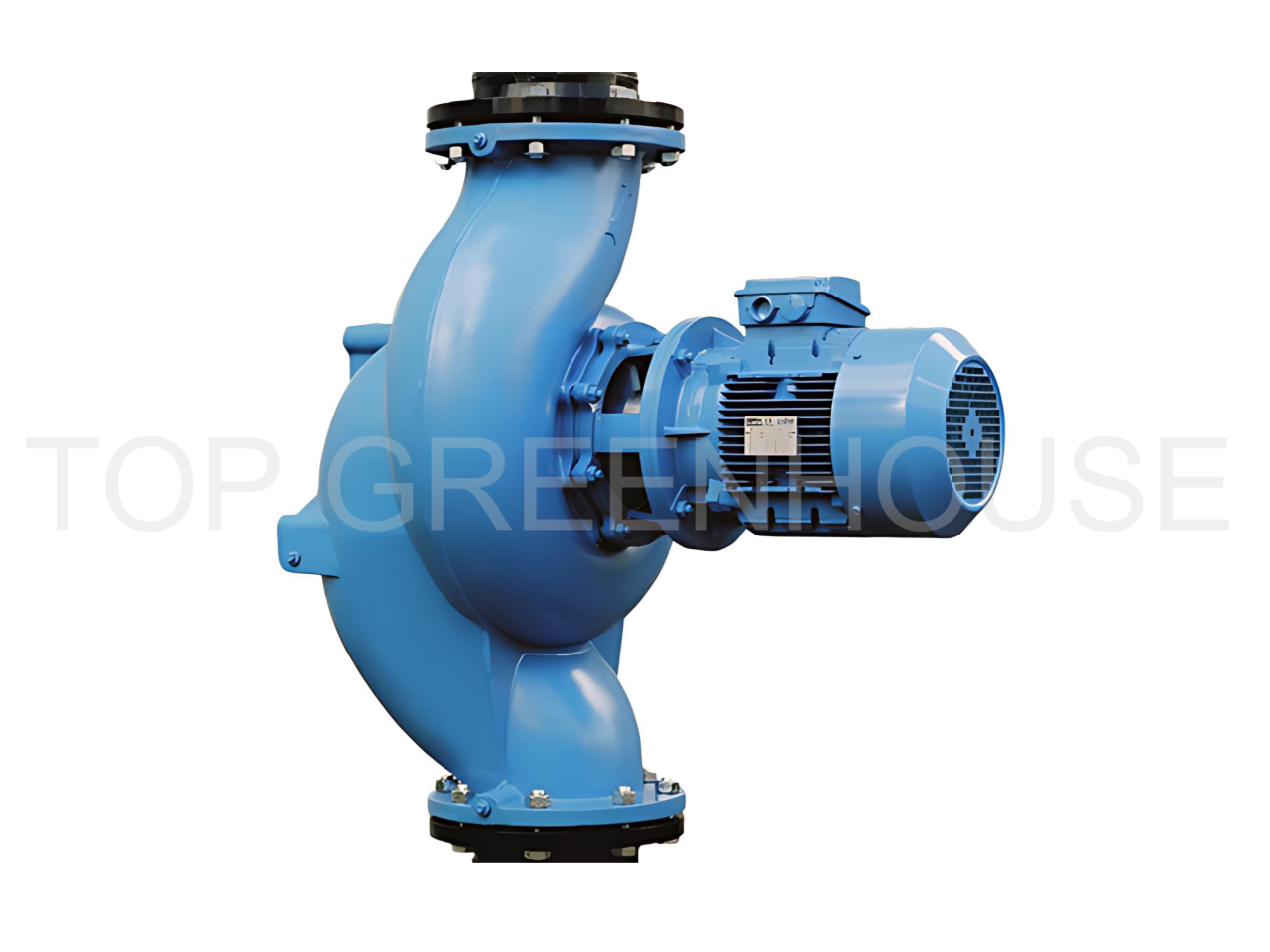

CombilineBloc - CLB

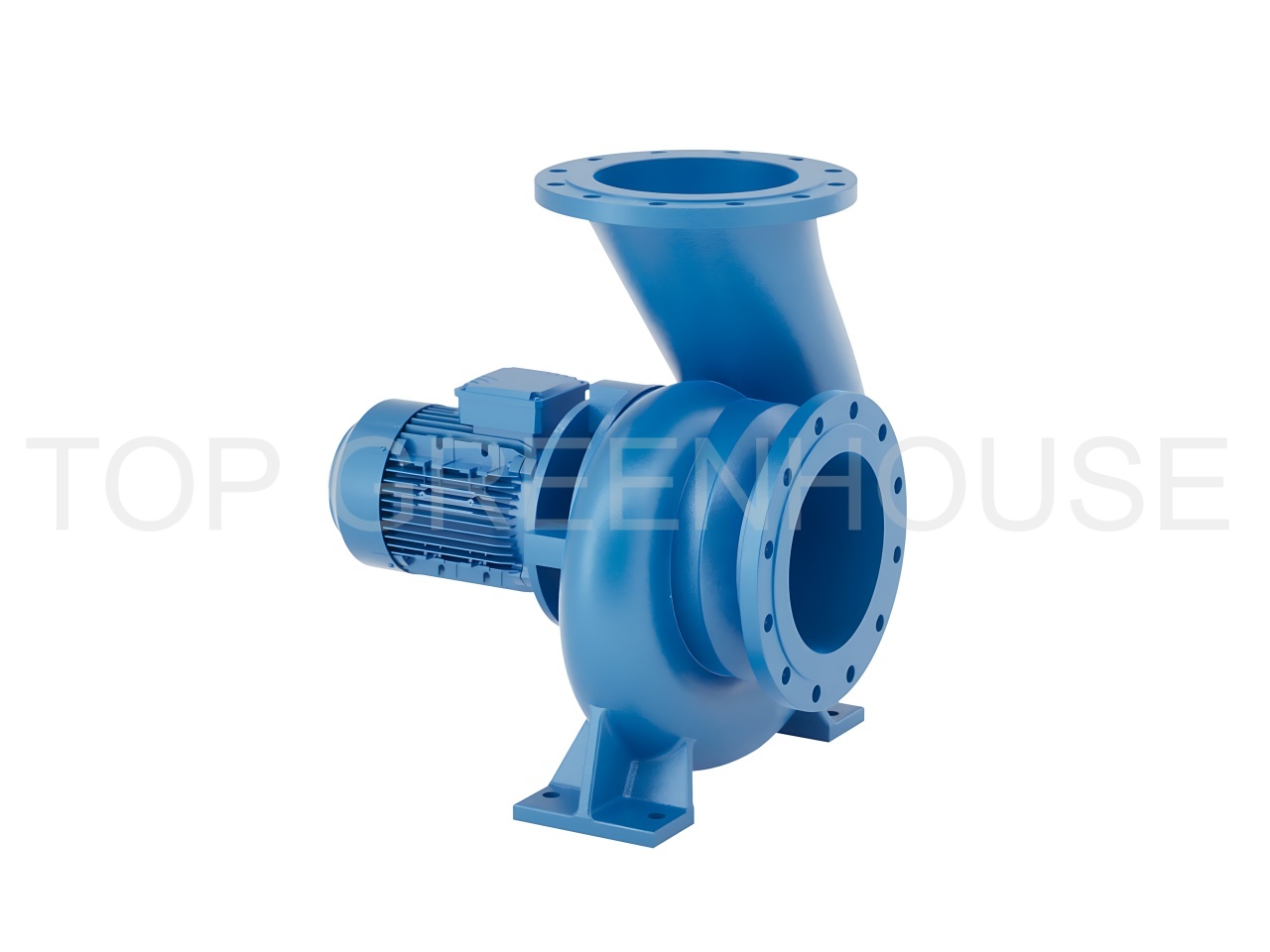

CombiBlocHorti - CBH

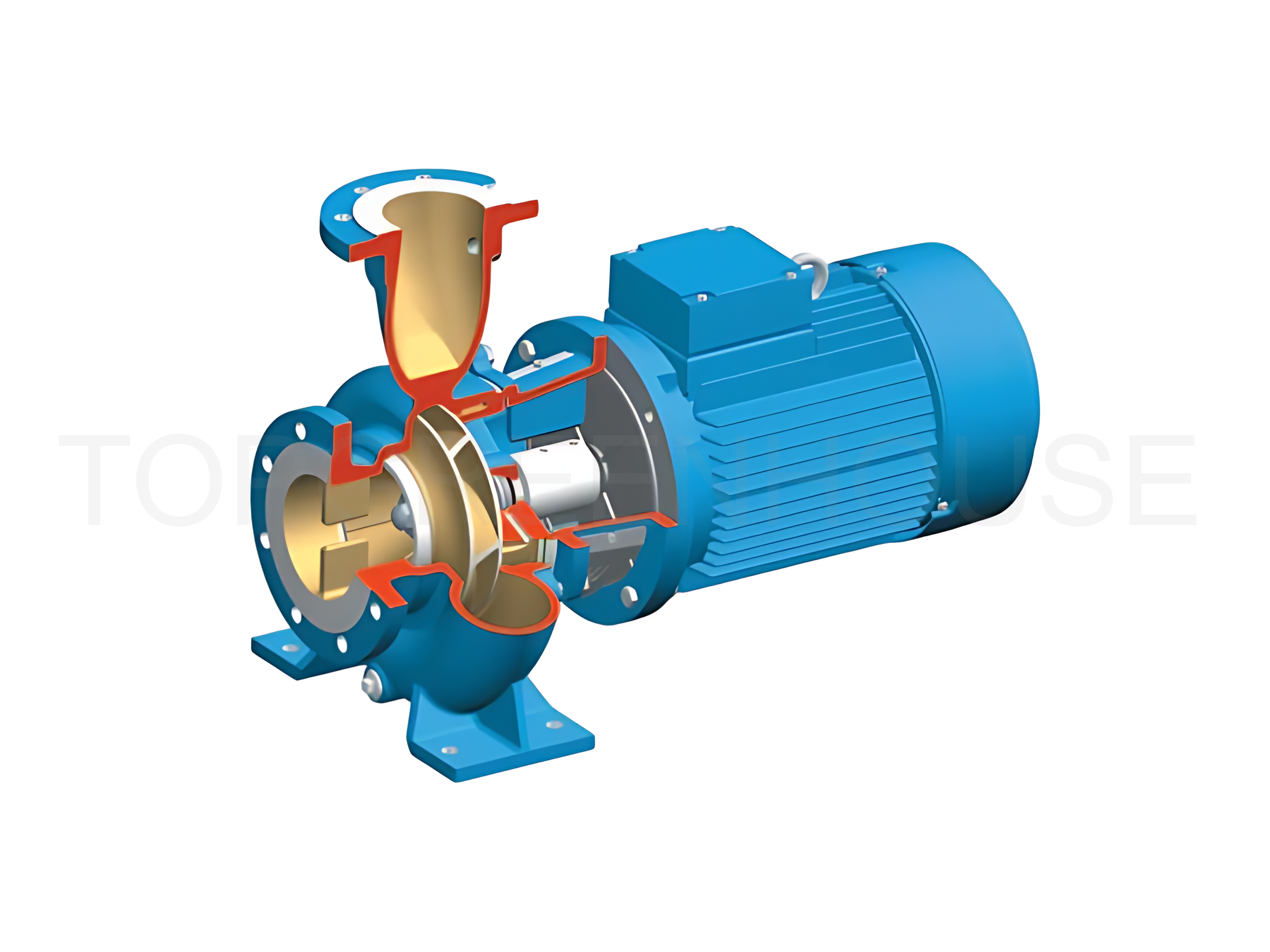

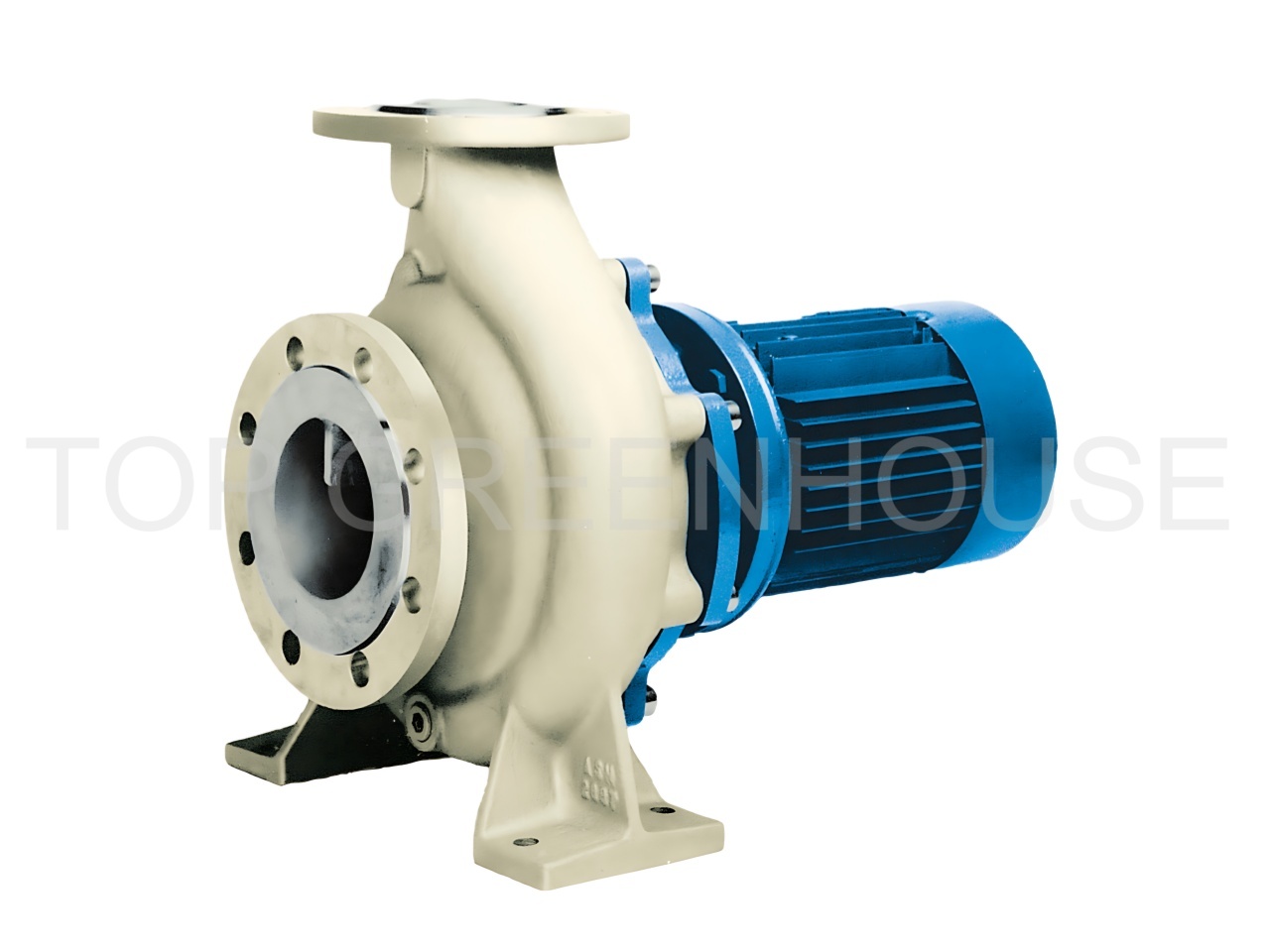

CombiBloc - CB

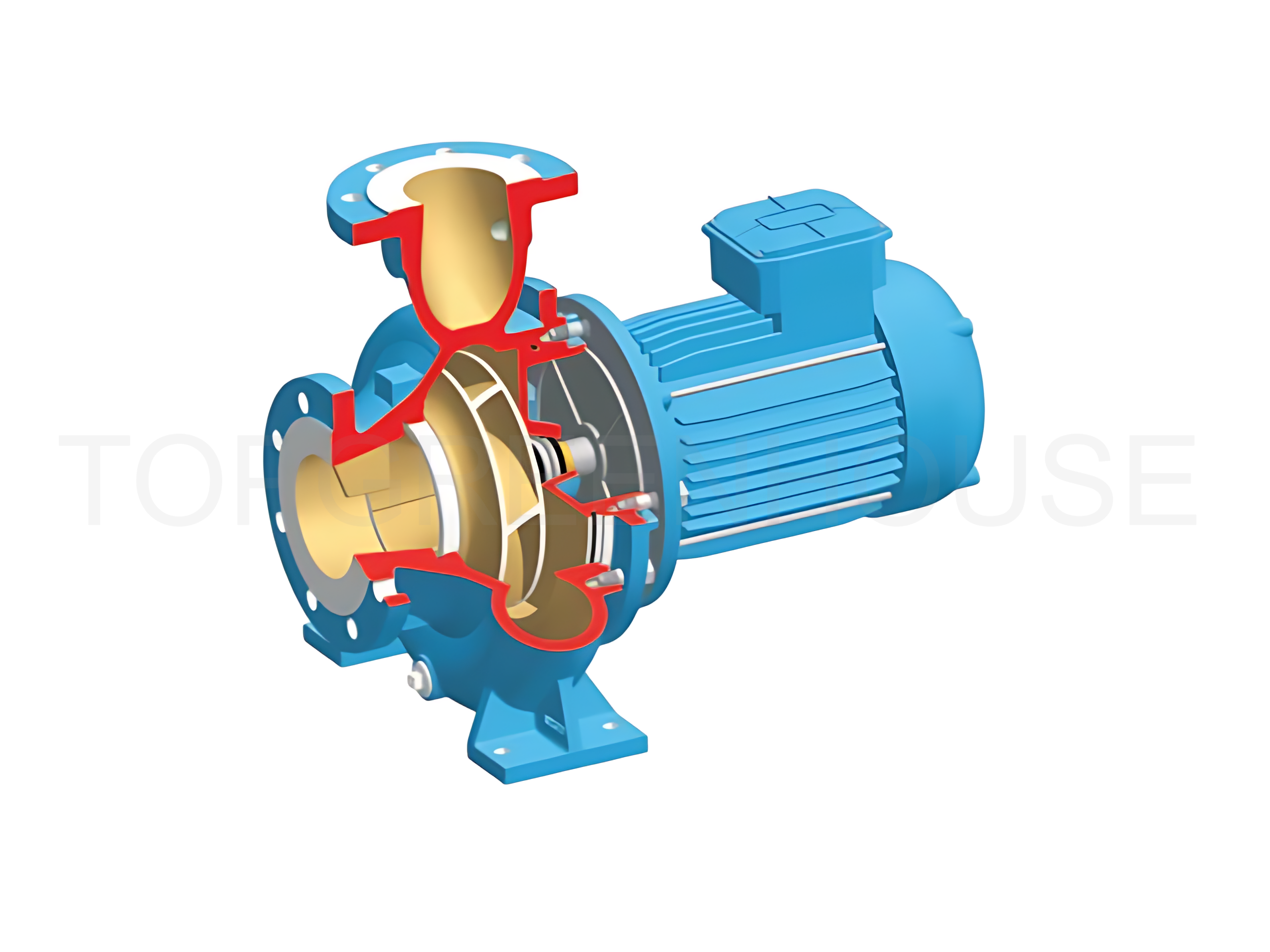

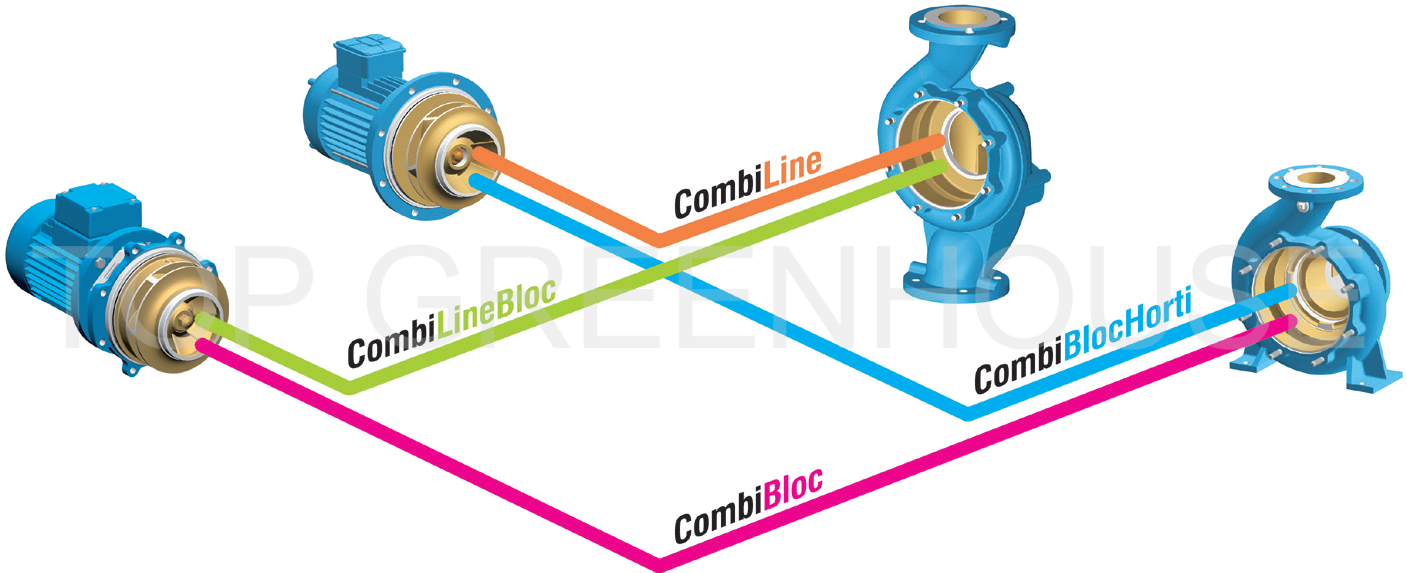

The four pump series share two common Back-Pull-Out (BPO) units, enabling easy maintenance without disconnecting the pipes.
Features a stainless steel extended motor shaft.
The impeller is mounted directly onto the motor shaft.
Designed with centering bosses for optimal motor alignment and reduced heat transfer to the motor.
Uses a standard IEC flange motor.
A stainless steel stub shaft is fitted onto the motor shaft to drive the impeller.
Mechanical Seal: All pumps are fitted with a rubber bellows mechanical seal per EN 12756, with Carbon/Silicon Carbide faces, suitable for high temperatures.
Electric Motor: Motors are suitable for European voltages, feature protection class IP55, and are available in various speeds (4-pole/6-pole), two-speed (Dahlander connection), and frequency-controlled options.
| Model | CL/CLB | CBH/CB | |
| Max. capacity | 50Hz | 400 m³/h | 600 m³/h |
| 60Hz | 500 m³/h | 800 m³/h | |
| Delivery head | 50Hz | 1 - 28 m | 1 - 35 m |
| 60Hz | 2 - 40 m | 2 - 50 m | |
| Max. temperature | 140℃ | 140℃ | |
| Max. working pressure | 6 bar (ND6) 10 bar (ND10) | 10 bar (ND10) | |
| Materials | pump casing | EN-GJL-250 (GG25) | EN-GJL-250 (GG25) |
| impeller | EN-GJL-200 (GG20) | EN-GJL-200 (GG20) | |
| motor shaft | X17CrNi 16-2 (1.4057) | X17CrNi 16-2 (1.4057) | |
| stub shaft | X2CrNiMo17.12.2 (1.4404) | X2CrNiMo17.12.2 (1.4404) | |
| shaft sleeve | G-CuSn7ZnPb (Rg 7) | G-CuSn7ZnPb (Rg 7) | |
| Nominal motor speed | 1450 min-1, 50 Hz 4 poles 950 min-1, 50 Hz 6 poles 1750 min-1, 60 Hz 4 poles 1150 min-1, 60 Hz 6 poles | ||
| 2 Speed motor with Dahlander connection | 1450/950 min-1, 50 Hz 4/6 poles 1750/1150 min-1, 60 Hz 4/6 poles | ||
| Frequency control wall mounted | from 1.1 kW, range 10 to 60 Hz | ||
| Electric motor protection class | IP55 | ||
| Electric motor voltage | 230/400 V (≤ 1.5 kW), 50 Hz 400/695 V (≥ 2.2 kW), 50 Hz 277/480 V (≤ 1.5 kW), 60 Hz 480/830 V (≥ 2.2 kW), 60 Hz other voltages/speeds on request | ||
| Mechanical seal | EN 12756 (DIN 24960), AQ1EGG carbon/silicon carbide, EPDM bellows | ||
Combines exceptional durability with superior energy efficiency, making it the perfect solution for greenhouse heating and cooling systems.
Hydraulic components are optimized using Computational Fluid Dynamics (CFD) to ensure precise and reliable performance that meets or exceeds design standards.
Equipped with frequency-controlled motor drives that automatically adjust pump speed to match real-time demand, significantly reducing energy usage.
For example, a 20% speed reduction can achieve nearly 50% energy savings.
Dual-speed motors (Dahlander connection) offer a simple, cost-effective way to cut power consumption.
Optional insulation kits for pumps and valves minimize heat loss, saving large volumes of gas annually while promoting sustainability.

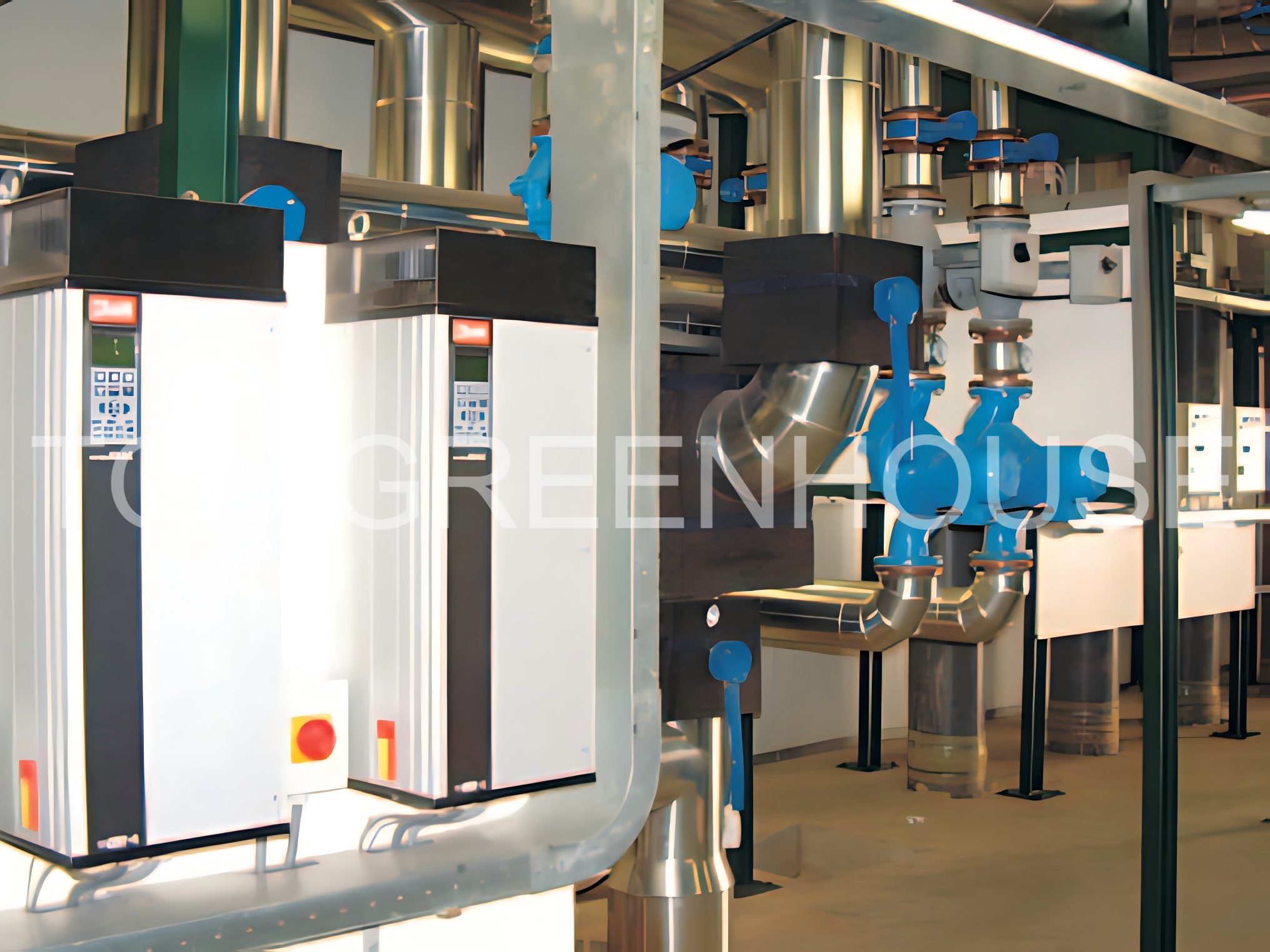

Developed in collaboration with Danfoss, integrating advanced VLT® HVAC Drive FC 102 controllers for easy servicing and precise control.
Features such as Automatic Motor Adaptation (AMA) and Automatic Energy Optimization (AEO) simplify setup and ensure the best efficiency.
Pumps can seamlessly operate at variable speeds, automatically adapting to the greenhouse’s climate needs.
Designed with a modular structure that allows components such as impellers, seals, and drive sections to be interchanged across multiple pump series (CL, CLB, CBH, CB).
This reduces spare part requirements, simplifies maintenance, and enhances operational flexibility.
Can be mounted in either horizontal or vertical positions between pipeline sections, giving users greater layout versatility.
Offered as in-line pumps (CL/CLB) for direct pipeline integration or as close-coupled, foot-mounted models (CBH/CB) for space-saving installations.
Pump Casing: EN-GJL-250 (GG25)
Impeller: EN-GJL-200 (GG20)
Motor Shaft: Stainless Steel X17CrNi16-2 (1.4057)
Mechanical Seal: EN 12756 compliant, bellow-type with carbon/silicon carbide pairing, ensuring long-lasting reliability and wear resistance.
The “Hydraulic Investigator” software enables precise pump selection tailored to system specifications.
It can simulate variable-speed performance, compare multiple configurations, and display energy-saving potential—helping users reduce power costs effectively.
Supported by a global service network and online technical resources.
The integrated Local Control Panel (LCP) offers 27 display languages and an intuitive, user-friendly interface for effortless operation anywhere in the world.
Over the past few decades, continuous research and innovation have brought a wave of advanced technologies into modern greenhouses.
These advancements have transformed greenhouse operations into a highly sophisticated industry, with systems and expertise now shared and implemented across the globe. Among the essential technologies are pump circulation systems and their integrated control units.
With today’s cutting-edge solutions, growers can fine-tune environmental conditions with remarkable precision. Maintaining stable temperatures is crucial, and this depends heavily on circulation pumps that offer dependable performance while minimizing energy use. The SPX FLOW Johnson Pump series stands out in this regard, delivering superior reliability and efficiency for both heating and cooling applications.
The system operates on a closed-loop circuit, ensuring efficient and controlled heat delivery. The core process is as follows:
It ensures consistent temperatures by circulating hot water through the greenhouse's heating system, creating optimal conditions for plant growth.
SPX FLOW provides four pump types: CombiLine (CL), CombiLineBloc (CLB), CombiBlocHorti (CBH), and CombiBloc (CB), available in in-line or close-coupled monobloc configurations.
Depending on the model, these pumps can operate at temperatures up to 140°C and pressures up to 10 bar.
The pump casings and impellers are made of cast iron (EN-GJL-250/200), with shafts and sleeves crafted from stainless steel and bronze alloys for enhanced durability.
SPX FLOW (Netherlands) manufactures the pumps, and Changzhou Top Greenhouse Co., Ltd. serves as the exclusive distributor in China.
A Heated Water Circulation System serves as the central technology behind precise temperature regulation in modern horticultural greenhouses. Its main goal is to provide a stable, evenly distributed environment that supports healthy and consistent plant growth by circulating warm water through an interconnected piping system.
Typically, this system is powered by a central boiler or a buffer tank that stores heated water. The heat is efficiently transferred across all greenhouse zones through a carefully designed network controlled by circulation pumps and an automated control unit. This advanced setup allows growers to achieve highly efficient, energy-saving climate control essential for modern greenhouse production.
The Heated Water Circulation System functions on a closed-loop mechanism, ensuring consistent and efficient heat transfer throughout the greenhouse. Its process can be divided into three main stages:
The system primarily relies on a boiler fueled by natural gas to produce heat.
During combustion, the boiler also generates CO₂, which can be redirected into the greenhouse to promote photosynthesis.
In some setups, heat may also come from external energy sources such as a Combined Heat and Power (CHP) plant or a district heating network.
The generated heat can be stored temporarily in a large buffer tank, ready for use when needed.
When using an external heating source, or when separating the boiler circuit from the greenhouse circuit, the heat is transferred through a dedicated heat exchanger for optimal safety and efficiency.
Circulation Pumps function as the heart of the system, pushing hot water through the extensive pipe network.
A manifold system divides and directs the heated water into different zones of the greenhouse.
A smart control system continuously monitors temperature and adjusts the flow rate and water temperature according to real-time climate data and crop requirements, ensuring every growing area maintains its ideal heat level.
SPX Johnson Pump's Horticulture range is designed around a strong modular concept, offering high component interchangeability. The series consists of two main structural types, comprising four primary product families.
Combiline - CL
CombilineBloc - CLB
CombiBlocHorti - CBH
CombiBloc - CB
The four pump series share two common Back-Pull-Out (BPO) units, enabling easy maintenance without disconnecting the pipes.
Features a stainless steel extended motor shaft.
The impeller is mounted directly onto the motor shaft.
Designed with centering bosses for optimal motor alignment and reduced heat transfer to the motor.
Uses a standard IEC flange motor.
A stainless steel stub shaft is fitted onto the motor shaft to drive the impeller.
Mechanical Seal: All pumps are fitted with a rubber bellows mechanical seal per EN 12756, with Carbon/Silicon Carbide faces, suitable for high temperatures.
Electric Motor: Motors are suitable for European voltages, feature protection class IP55, and are available in various speeds (4-pole/6-pole), two-speed (Dahlander connection), and frequency-controlled options.
| Model | CL/CLB | CBH/CB | |
| Max. capacity | 50Hz | 400 m³/h | 600 m³/h |
| 60Hz | 500 m³/h | 800 m³/h | |
| Delivery head | 50Hz | 1 - 28 m | 1 - 35 m |
| 60Hz | 2 - 40 m | 2 - 50 m | |
| Max. temperature | 140℃ | 140℃ | |
| Max. working pressure | 6 bar (ND6) 10 bar (ND10) | 10 bar (ND10) | |
| Materials | pump casing | EN-GJL-250 (GG25) | EN-GJL-250 (GG25) |
| impeller | EN-GJL-200 (GG20) | EN-GJL-200 (GG20) | |
| motor shaft | X17CrNi 16-2 (1.4057) | X17CrNi 16-2 (1.4057) | |
| stub shaft | X2CrNiMo17.12.2 (1.4404) | X2CrNiMo17.12.2 (1.4404) | |
| shaft sleeve | G-CuSn7ZnPb (Rg 7) | G-CuSn7ZnPb (Rg 7) | |
| Nominal motor speed | 1450 min-1, 50 Hz 4 poles 950 min-1, 50 Hz 6 poles 1750 min-1, 60 Hz 4 poles 1150 min-1, 60 Hz 6 poles | ||
| 2 Speed motor with Dahlander connection | 1450/950 min-1, 50 Hz 4/6 poles 1750/1150 min-1, 60 Hz 4/6 poles | ||
| Frequency control wall mounted | from 1.1 kW, range 10 to 60 Hz | ||
| Electric motor protection class | IP55 | ||
| Electric motor voltage | 230/400 V (≤ 1.5 kW), 50 Hz 400/695 V (≥ 2.2 kW), 50 Hz 277/480 V (≤ 1.5 kW), 60 Hz 480/830 V (≥ 2.2 kW), 60 Hz other voltages/speeds on request | ||
| Mechanical seal | EN 12756 (DIN 24960), AQ1EGG carbon/silicon carbide, EPDM bellows | ||
Combines exceptional durability with superior energy efficiency, making it the perfect solution for greenhouse heating and cooling systems.
Hydraulic components are optimized using Computational Fluid Dynamics (CFD) to ensure precise and reliable performance that meets or exceeds design standards.
Equipped with frequency-controlled motor drives that automatically adjust pump speed to match real-time demand, significantly reducing energy usage.
For example, a 20% speed reduction can achieve nearly 50% energy savings.
Dual-speed motors (Dahlander connection) offer a simple, cost-effective way to cut power consumption.
Optional insulation kits for pumps and valves minimize heat loss, saving large volumes of gas annually while promoting sustainability.
Developed in collaboration with Danfoss, integrating advanced VLT® HVAC Drive FC 102 controllers for easy servicing and precise control.
Features such as Automatic Motor Adaptation (AMA) and Automatic Energy Optimization (AEO) simplify setup and ensure the best efficiency.
Pumps can seamlessly operate at variable speeds, automatically adapting to the greenhouse’s climate needs.
Designed with a modular structure that allows components such as impellers, seals, and drive sections to be interchanged across multiple pump series (CL, CLB, CBH, CB).
This reduces spare part requirements, simplifies maintenance, and enhances operational flexibility.
Can be mounted in either horizontal or vertical positions between pipeline sections, giving users greater layout versatility.
Offered as in-line pumps (CL/CLB) for direct pipeline integration or as close-coupled, foot-mounted models (CBH/CB) for space-saving installations.
Pump Casing: EN-GJL-250 (GG25)
Impeller: EN-GJL-200 (GG20)
Motor Shaft: Stainless Steel X17CrNi16-2 (1.4057)
Mechanical Seal: EN 12756 compliant, bellow-type with carbon/silicon carbide pairing, ensuring long-lasting reliability and wear resistance.
The “Hydraulic Investigator” software enables precise pump selection tailored to system specifications.
It can simulate variable-speed performance, compare multiple configurations, and display energy-saving potential—helping users reduce power costs effectively.
Supported by a global service network and online technical resources.
The integrated Local Control Panel (LCP) offers 27 display languages and an intuitive, user-friendly interface for effortless operation anywhere in the world.
Over the past few decades, continuous research and innovation have brought a wave of advanced technologies into modern greenhouses.
These advancements have transformed greenhouse operations into a highly sophisticated industry, with systems and expertise now shared and implemented across the globe. Among the essential technologies are pump circulation systems and their integrated control units.
With today’s cutting-edge solutions, growers can fine-tune environmental conditions with remarkable precision. Maintaining stable temperatures is crucial, and this depends heavily on circulation pumps that offer dependable performance while minimizing energy use. The SPX FLOW Johnson Pump series stands out in this regard, delivering superior reliability and efficiency for both heating and cooling applications.
The system operates on a closed-loop circuit, ensuring efficient and controlled heat delivery. The core process is as follows:
It ensures consistent temperatures by circulating hot water through the greenhouse's heating system, creating optimal conditions for plant growth.
SPX FLOW provides four pump types: CombiLine (CL), CombiLineBloc (CLB), CombiBlocHorti (CBH), and CombiBloc (CB), available in in-line or close-coupled monobloc configurations.
Depending on the model, these pumps can operate at temperatures up to 140°C and pressures up to 10 bar.
The pump casings and impellers are made of cast iron (EN-GJL-250/200), with shafts and sleeves crafted from stainless steel and bronze alloys for enhanced durability.
SPX FLOW (Netherlands) manufactures the pumps, and Changzhou Top Greenhouse Co., Ltd. serves as the exclusive distributor in China.
